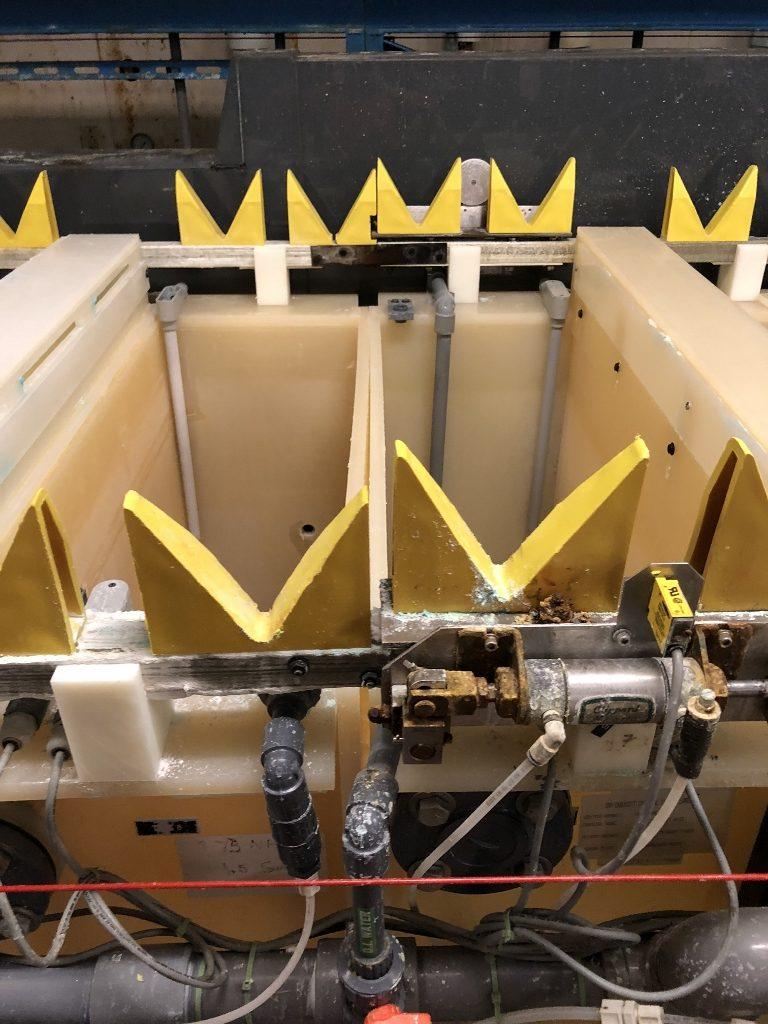

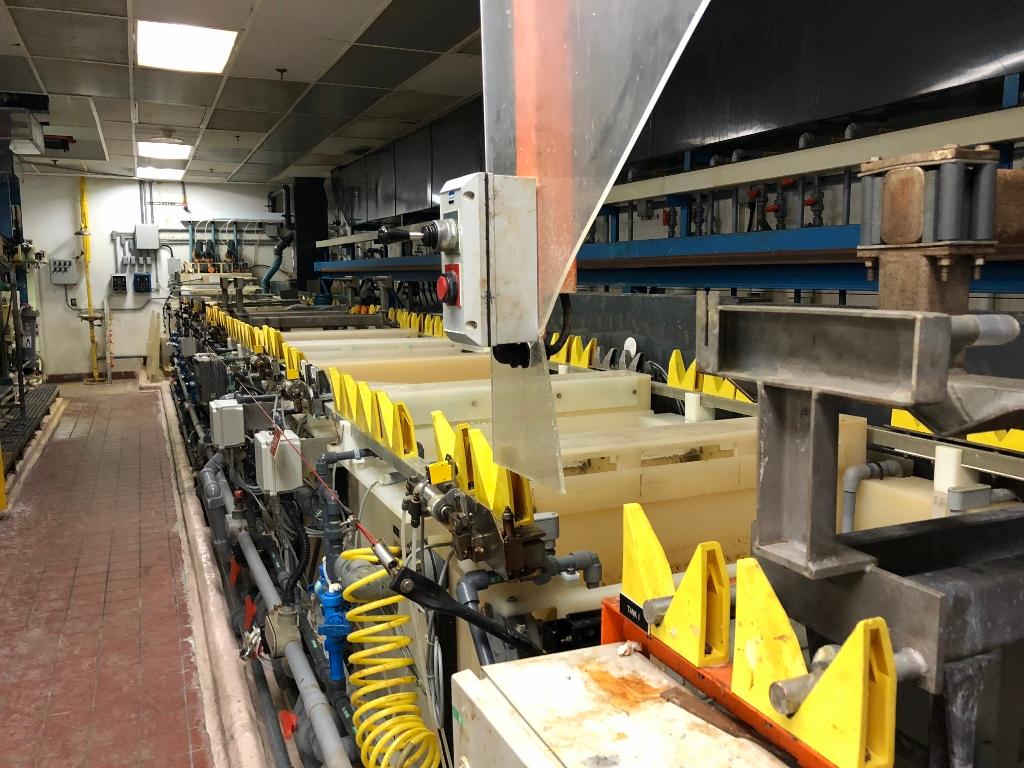

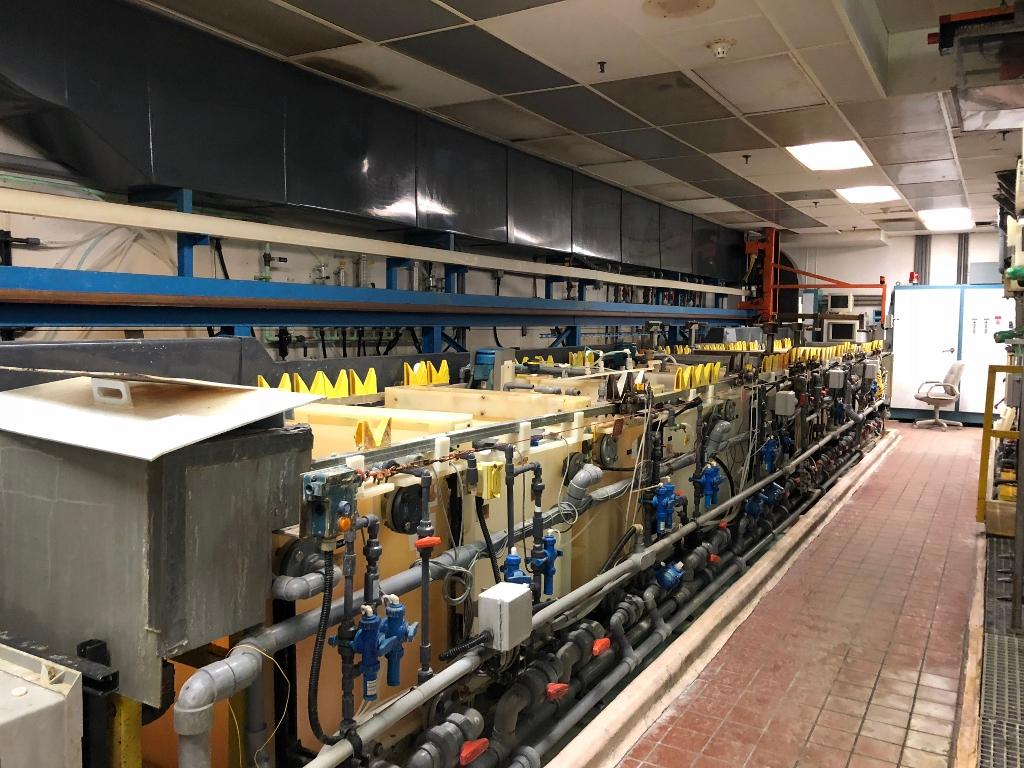

This is a side arm hoist line which is low profile and was installed in a room with an 8’ ceiling. The line structure, hoist, tanks and all accessory equipment have been carefully decommissioned, cleaned and dismantled.

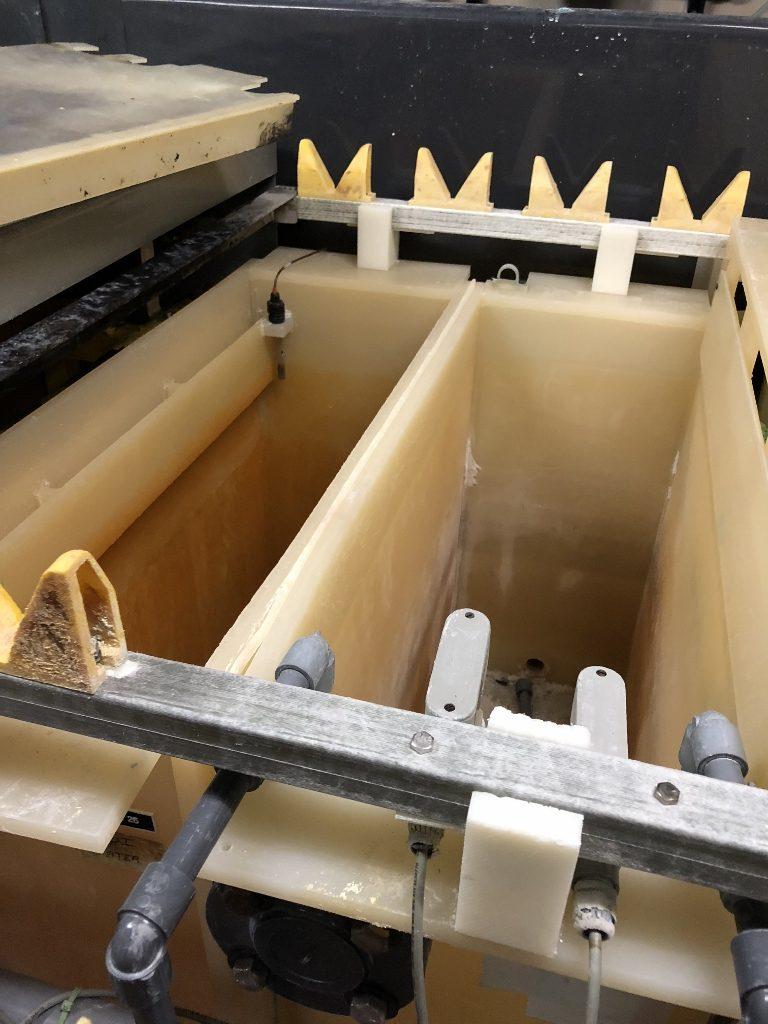

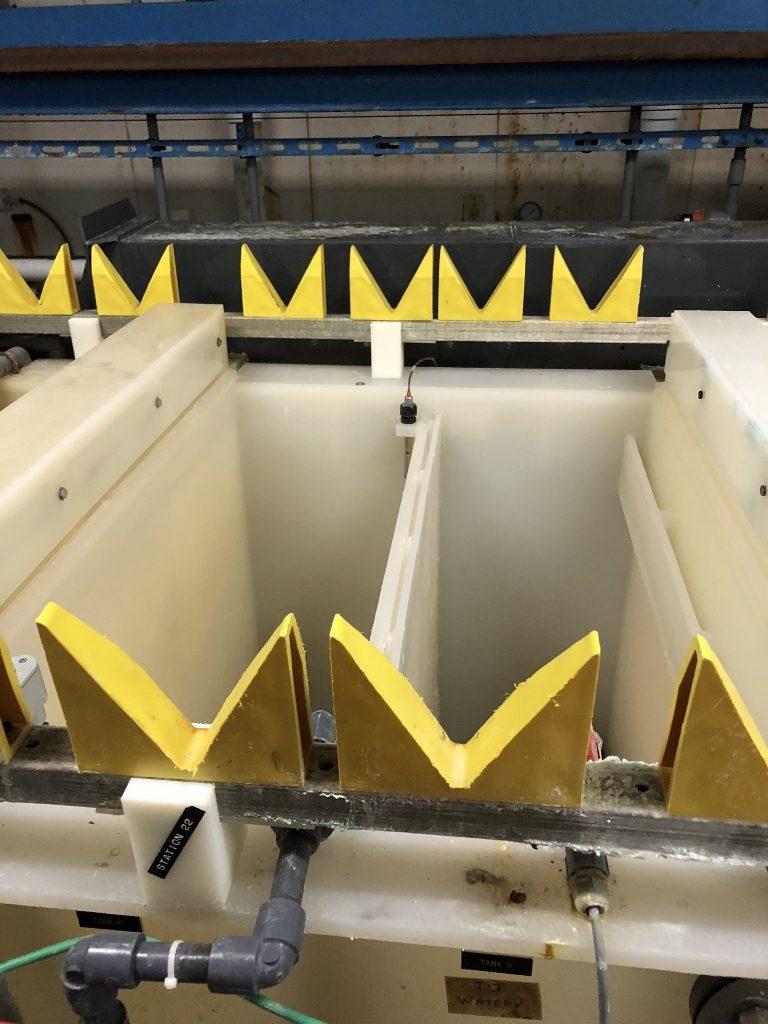

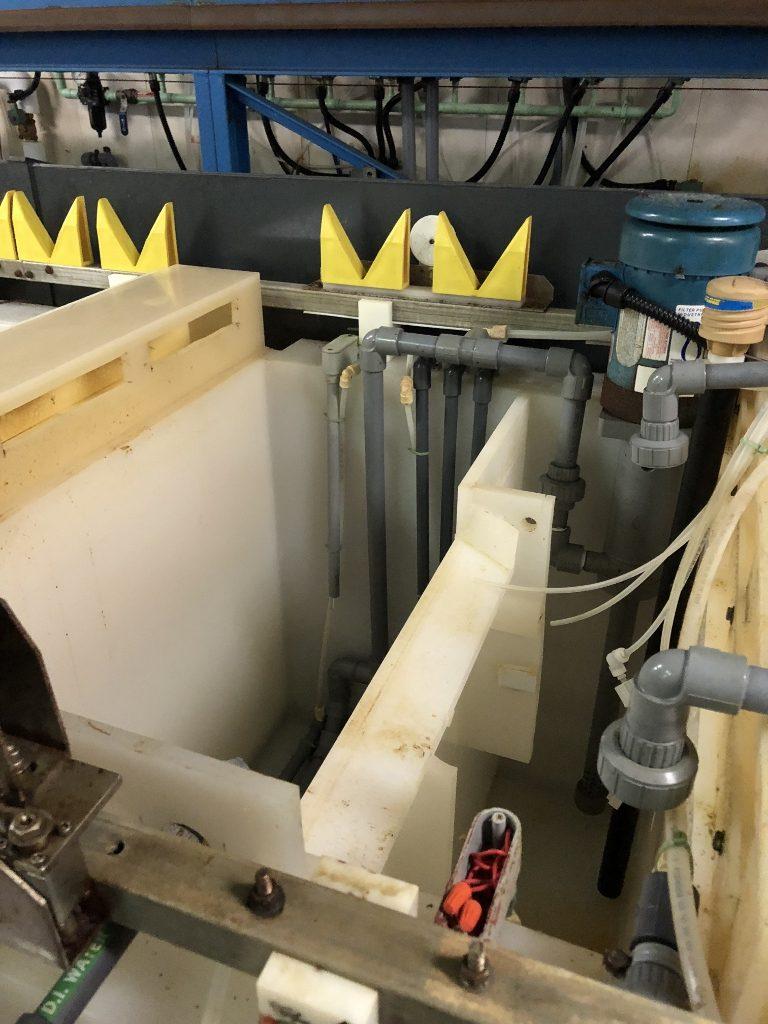

Process tanks on this line are heated by low pressure steam and grid type immersion coils (titanium and stainless).

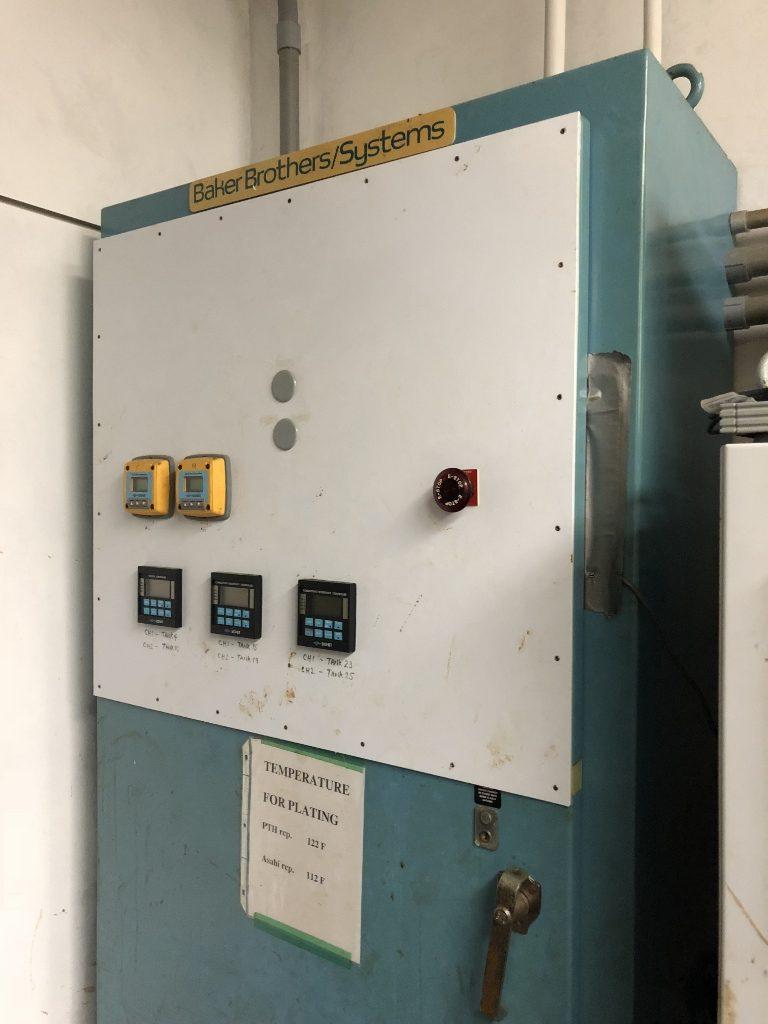

The line can be run manually without too much control retrofit. Allen Bradley hardware is used in this lines automation.

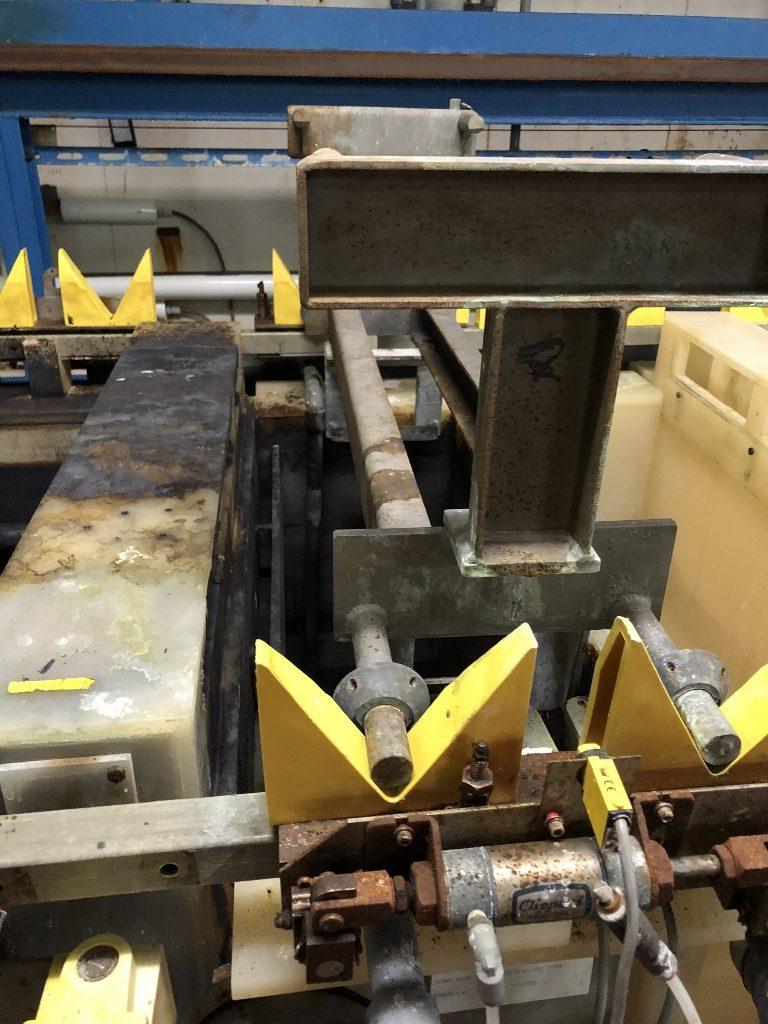

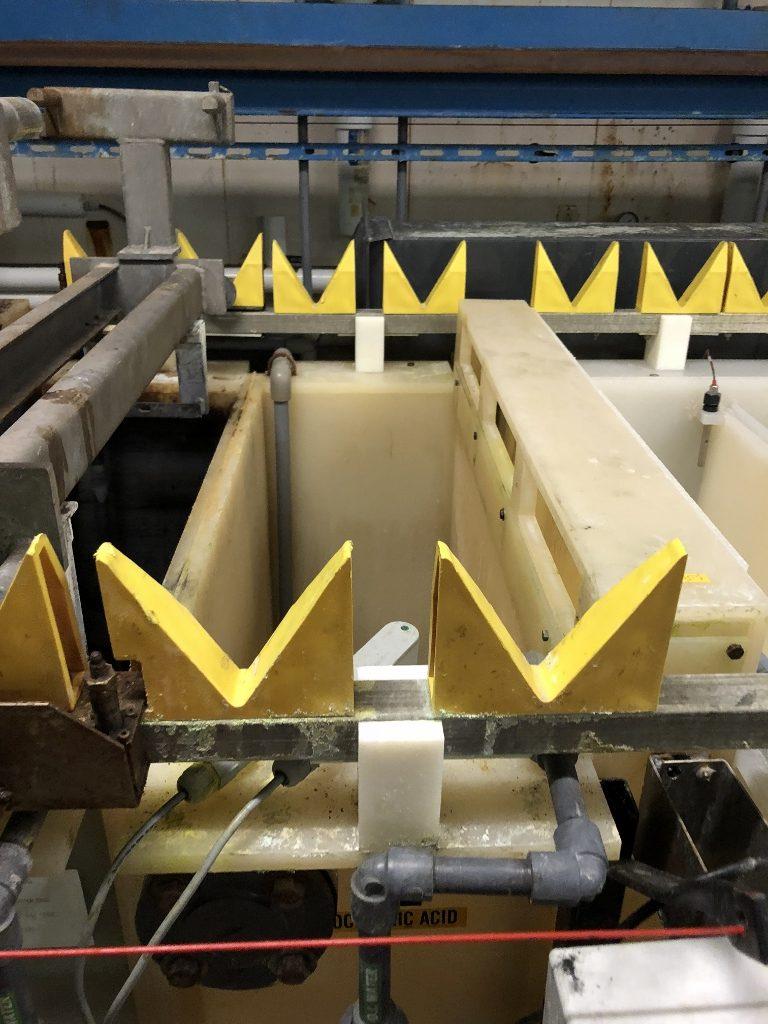

This line has a stainless steel frame that sits atop the tanks and moves back and forth providing mechanical cathode agitation for every station. The frame is powered by a low rpm motor and linkage. Frame sits on rollers mounted to tank rim and goes back and forth slowly thus moving every flight bar in every tank back and forth.

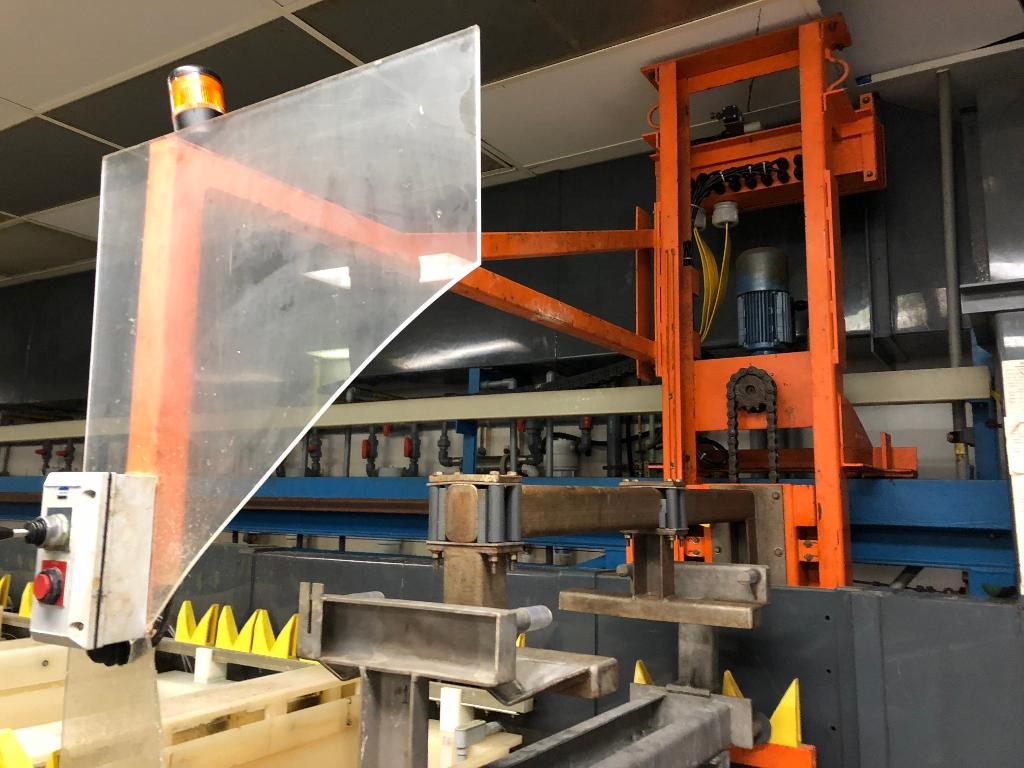

The side arm hoist and hoist structure come with the line. Multiple stainless steel flight bars also come with the line.
