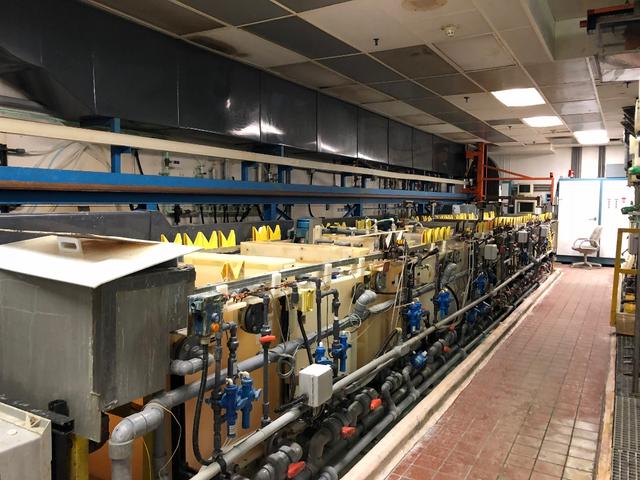

Automatic rack plating line with (4) 1,000 lb. capacity overhead, laser positioned, programmable hoists. \n \nThis line has 33 tanks and 46 stations, with 15 electrified plating process stations and a hot forced air cabinet rack dryer station. \n \nPlating Station Breakdown:  (5) Copper plating stations, (2) Platinum nickel plating stations, (4) Semi-bright nickel plating stations, (2) Bright nickel plating stations, (1) Microporous nickel plating station, and (1) Bright chrome plating station. \n \nNominal tank dimensions on this line are 16” wide x 81” long x 47” deep. \n \nEtch tanks on this line are titanium while other tanks are either koroseal lined steel or stainless steel. \n \nThis line has GE Fanuc controls with simple ladder logic software. \n \nHere is another line that could be used for multiple finishes or could be readily converted into multiple automated or manual plating/anodizing lines. \n \n

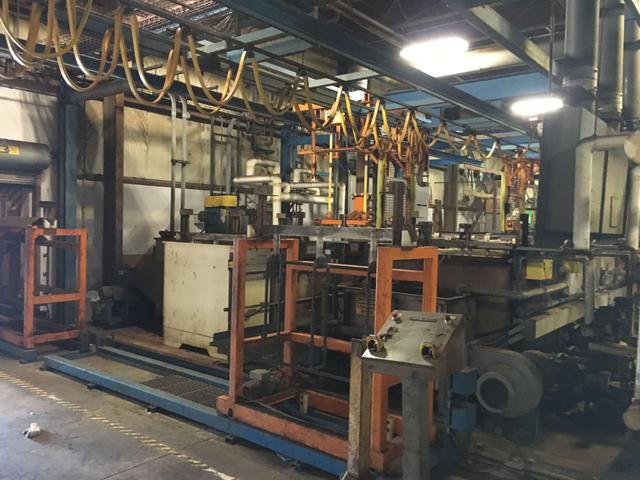

Automatic rack plating line with four 1500 lb.  capacity overhead, laser positioned, programmable hoists. \n \nThis line has 40 tanks and 62 stations, 25 of which are different plating process stations. \n \nPlating Station Breakdown:  (2) Electroless nickel stations, (1) Immersion copper station, (2) Copper strike stations, (8) Acid copper stations, (7) Semi-bright nickel stations, (3) Bright nickel stations, (1) Microporous nickel station, (1) Bright chrome station. \n \nNominal tank dimensions on this line are 20” wide x 139” long x 48” deep. \n \nThe line has been well maintained with recent additions of titanium etch tanks and upgraded AC drives as well as a complete controls overhaul 4 years ago to with old controls and hardware swapped out for state-of-the-art Aucos control software. \n \nWould make an amazing multi-metal line or could be readily converted into multiple automated or manual plating/anodizing lines. \n \n

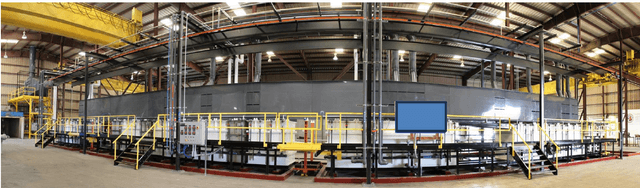

This line is a U-shaped automated line complete with automatic transfer end shuttle tank. The line was built by UAS and was used for iron phosphate for a period of 4 years prior to being professionally cleaned and decommissioned. \n \nThe line has 19 stations in 15 tanks with tank DOT ranging in size from 22” to 56”, tank CDOT is 48” and tank depth is 42”. A tank schedule is attached which depicts the tank sizes – we have everything from station #1 to station #18 on this list. Stations #19 – 24 were a primer application section of the line which we did not save. Also attached is the original line layout. \n \nThere are 2 overhead, programmable automatic hoists which can also be run in semi-automatic or manual mode via operator remote pendant. The inverted “U” shaped superstructure for the line was scrapped during the decommissioning/dismantling process and as such, is not included with the package. 1 of 2 electrical panels were scrapped so the line will need control retrofit for the automation to function.   The line also has a 2 station stainless steel dryer with forced hot air. This line could easily be converted into an anodizing or plating line with addition of the right rectifier and chiller etc. – we have this equipment available. The line could also be run in manual mode to avoid updating of the automation system.

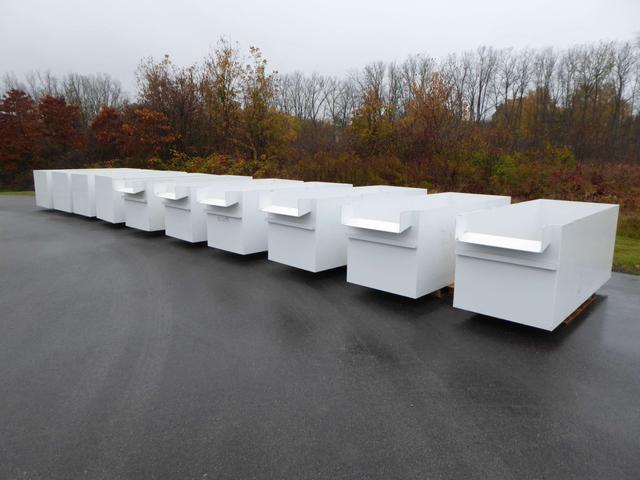

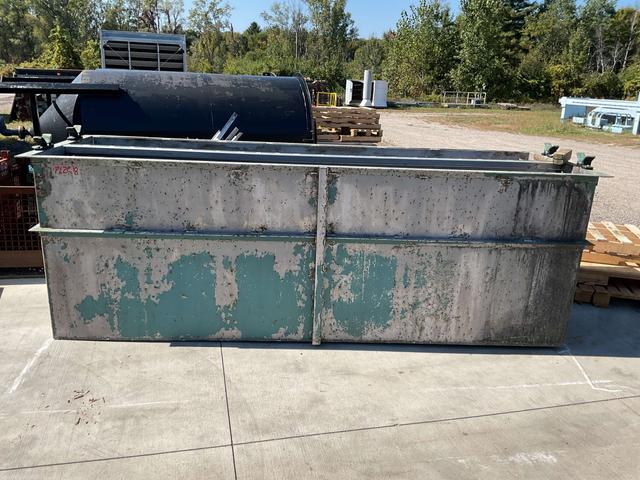

2" Drain at Bottom of Each Tank.\n\n2 Support Bands Per Tank.\n\n

Poly-Pro Construction. \n \n5.50" Deep Spill Trays. \n \n30" Wide Fiberglass Cat Walk. \n \n(4) Fume Hood. \n \nWash/Rinse Station. \n \n(2) 28"L x 22"W x 34"H \n \n(3) 28"L x 30"W x 34"H \n \n(1) 28"L x 34"W x 34"H \n \n(2) 28"L x 41"W x 34"H \n \n100" OAD Height Including Hood.

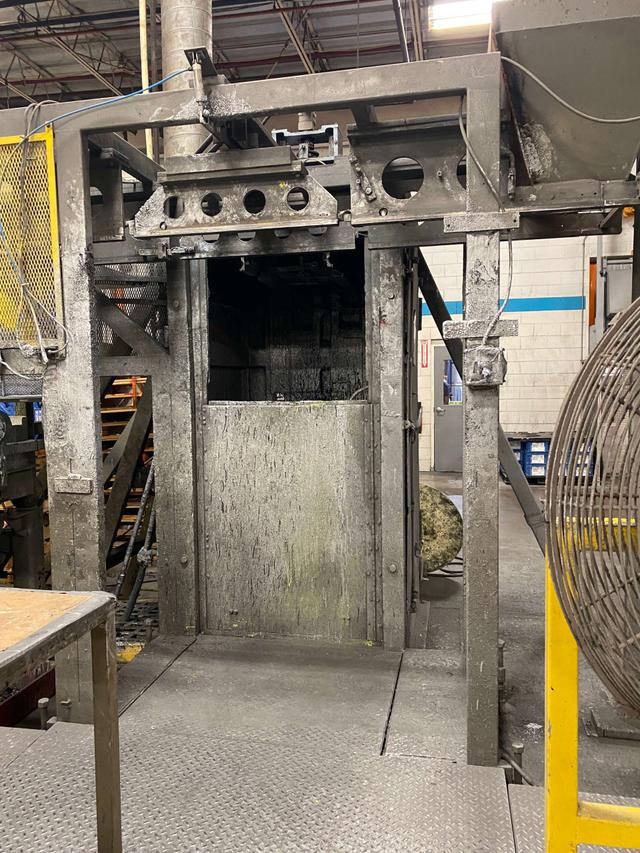

24" Manual Spring Tool Dip Spin Machine. PL2206 \n \nIncludes: \n \nHydraulic drive with load hopper and scale, variable speed.. \n

(4) Baskets and paint pots.

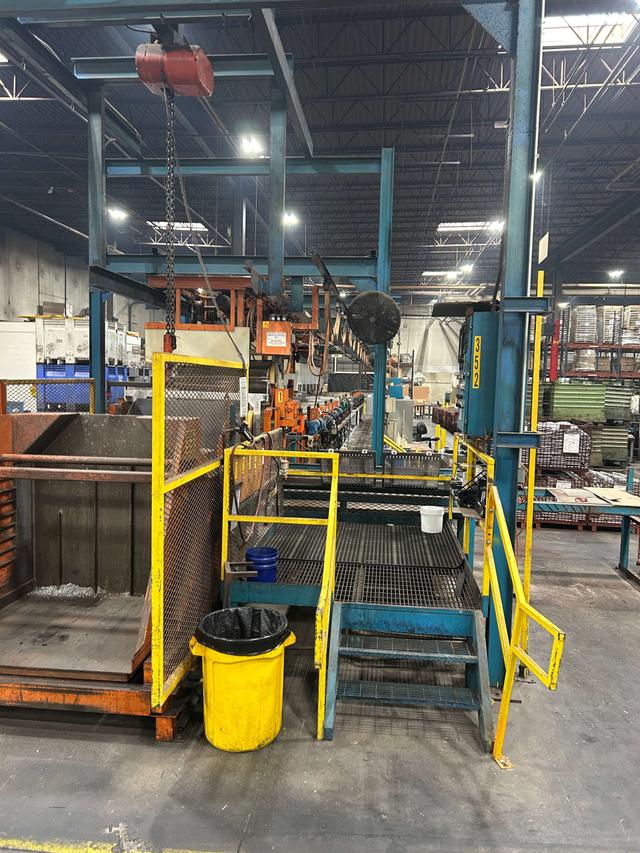

One ½ ton CM Loadstar hoist.

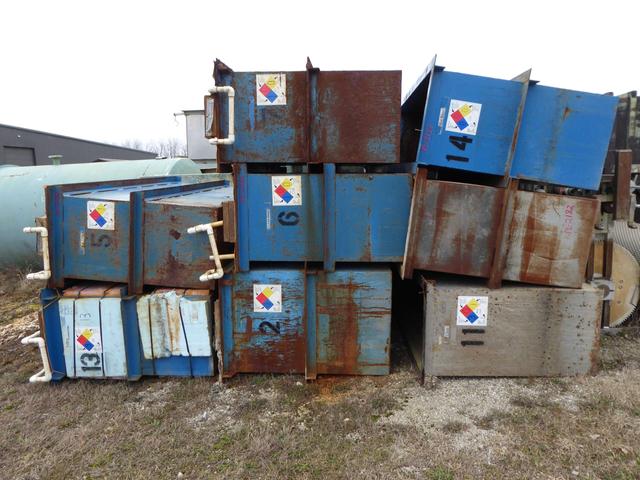

(7) 96"L x 24"W x 48"H \n \n(1) 96"L x 30"W x 48"H \n \n(1) 96"L x 36"W x 48"H \n \n(8) Steel Tanks \n \n(1) Stainless Steel Tank \n \n(3) Steel Tanks Have Liners in Fair Condition \n \nAll Tanks Have Support Bands \n \n2" Drains

Includes Barrel Saddles and Copper Bussing.  Support Bands on Tanks.  (3) 30"L x 38"W x 29"H, (2) 36"L x 38"W x 29"H with Counterflow,  (1) 35"L x 38"W x 29"H &  (1) 144"L x 38"W x 29"H.  Missing Drives and Barrels.

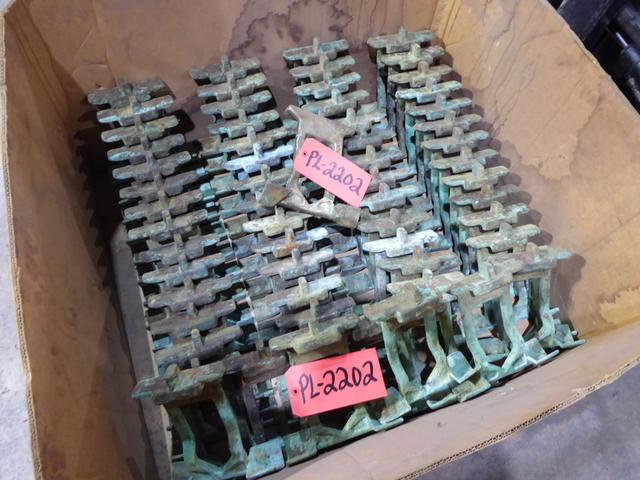

Rack holders for Udylite, Napco and Fanta split rail return type machines. \n \nCapacity per rack:  175 lbs. \n \n
