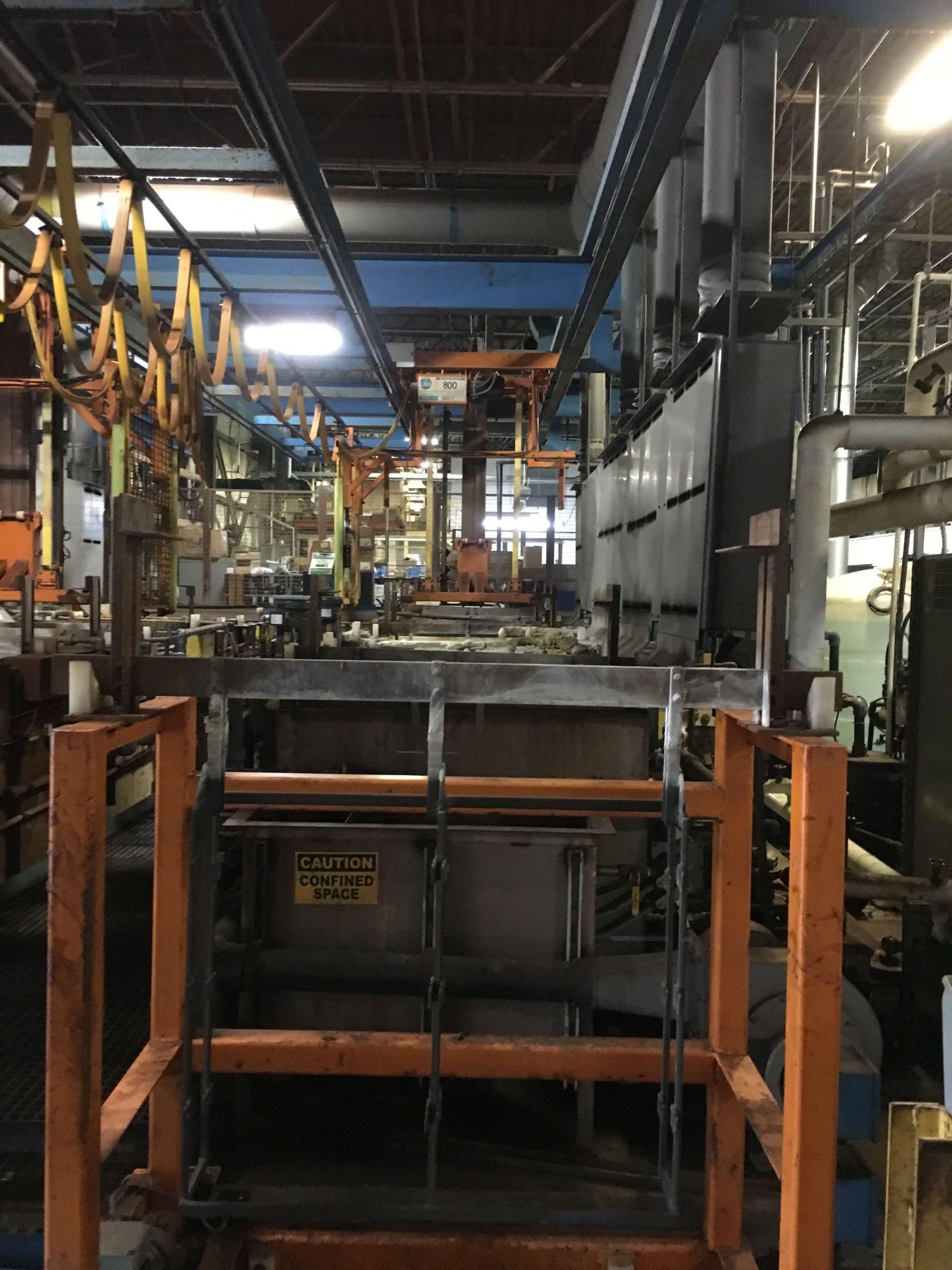

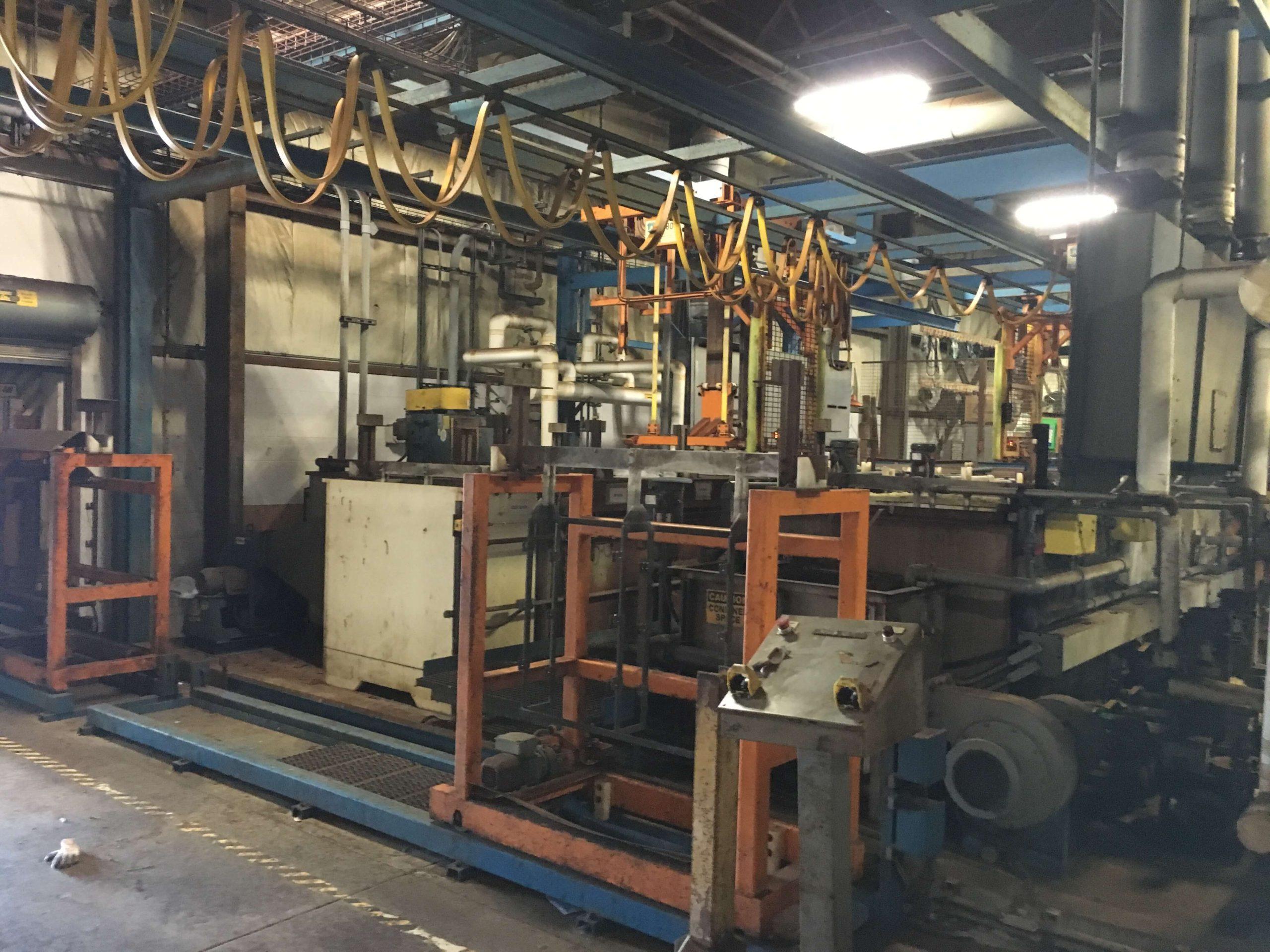

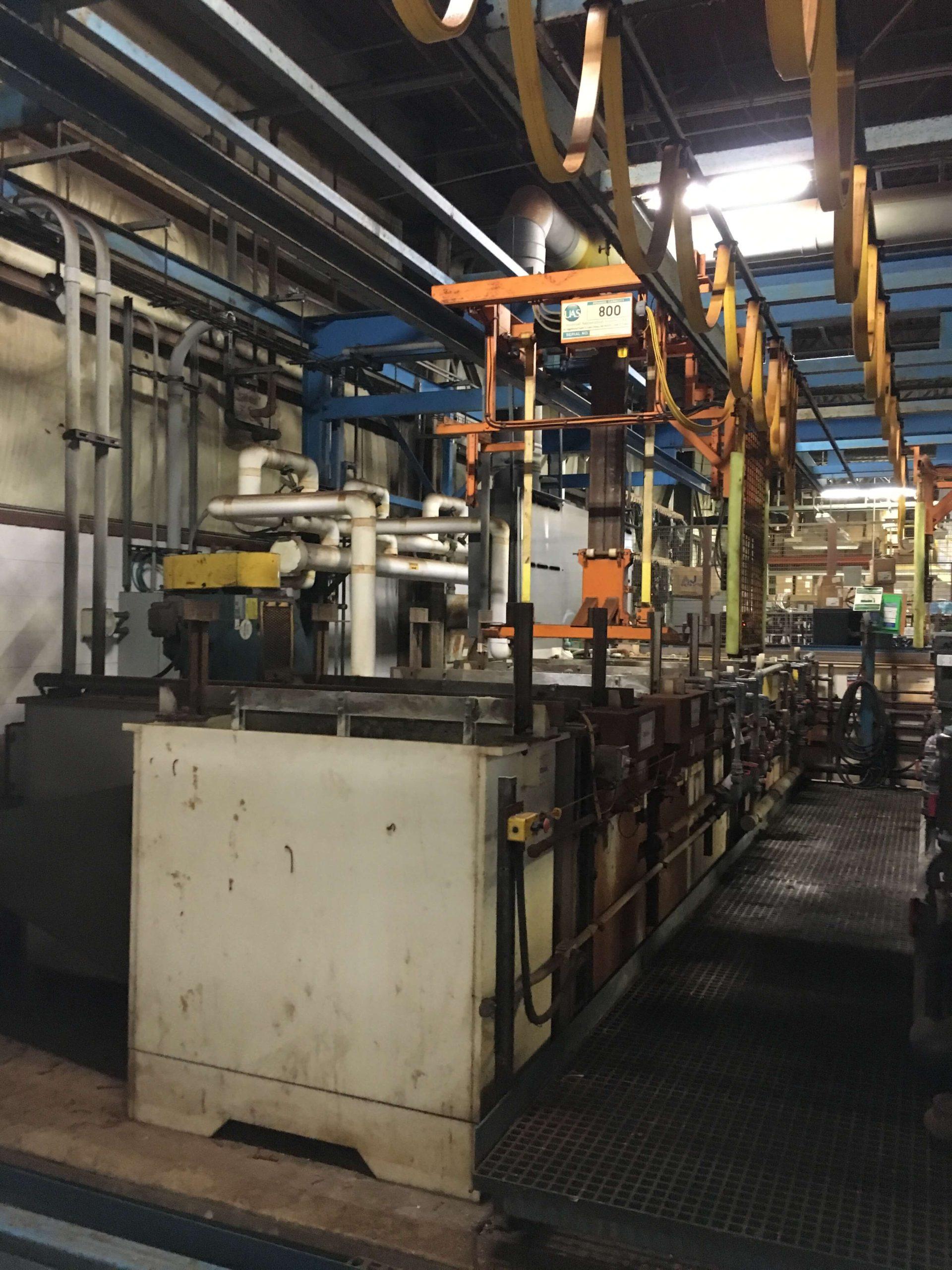

This line is a U-shaped automated line complete with automatic transfer end shuttle tank. The line was built by UAS and was used for iron phosphate for a period of 4 years prior to being professionally cleaned and decommissioned.

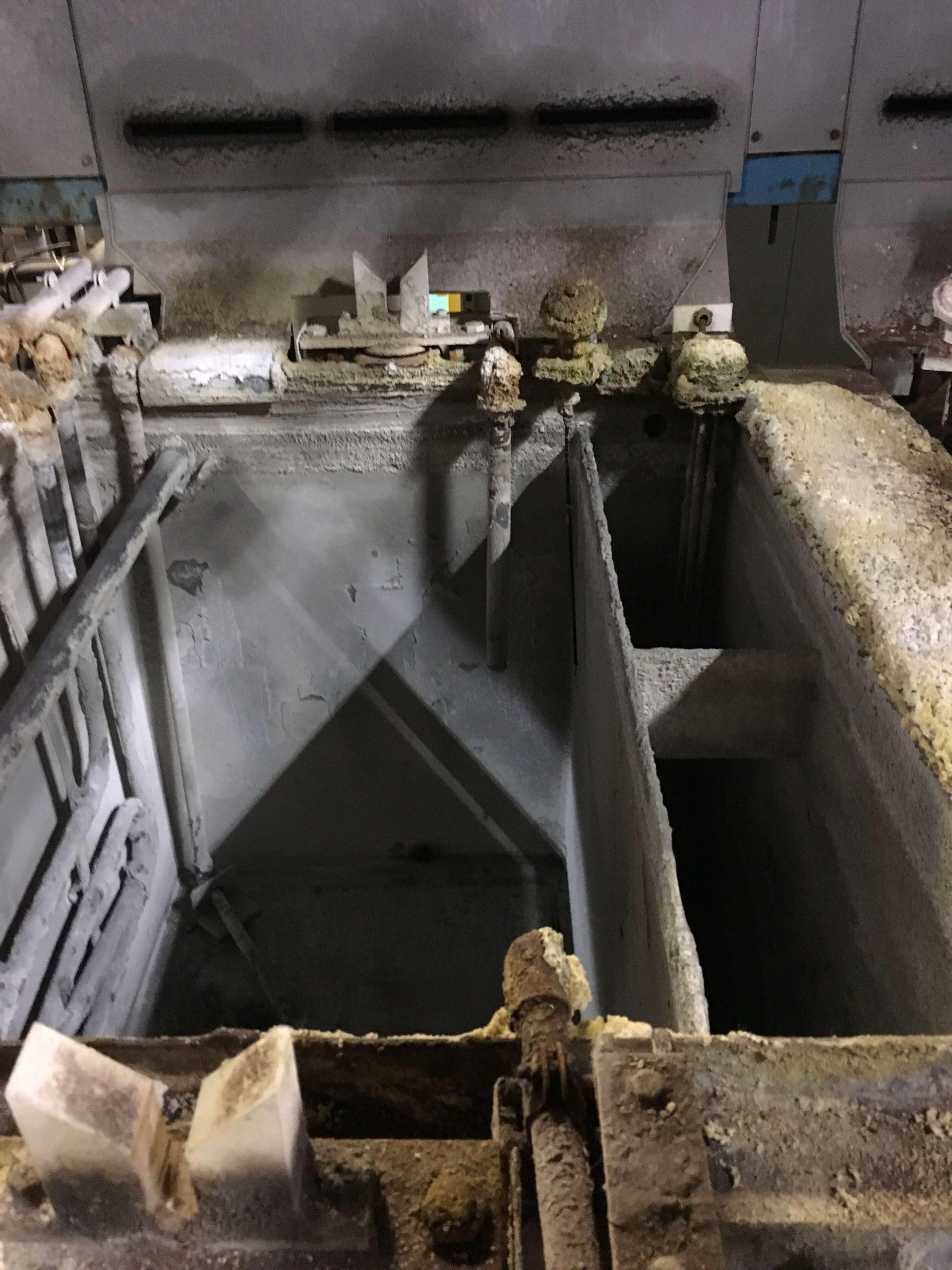

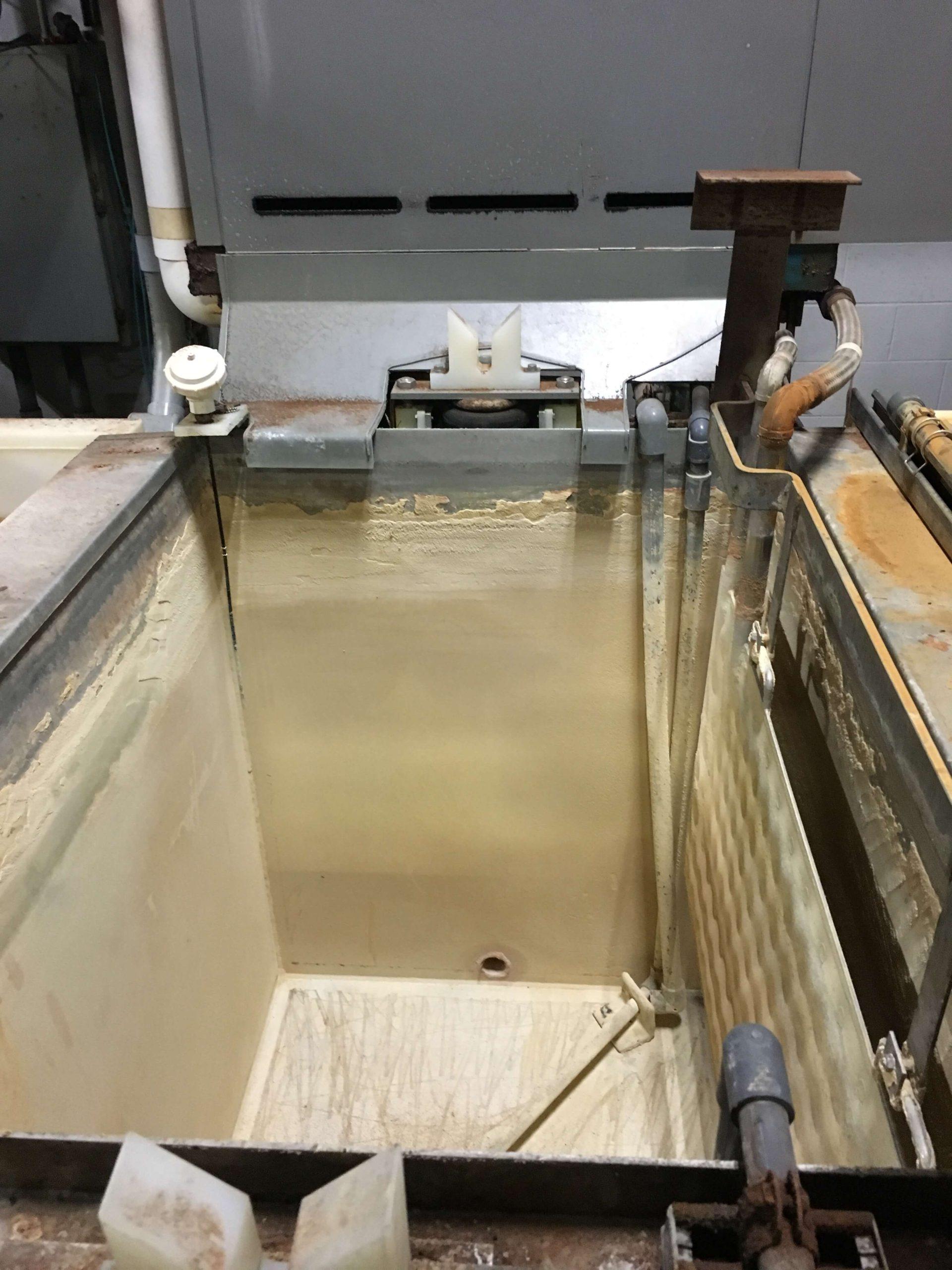

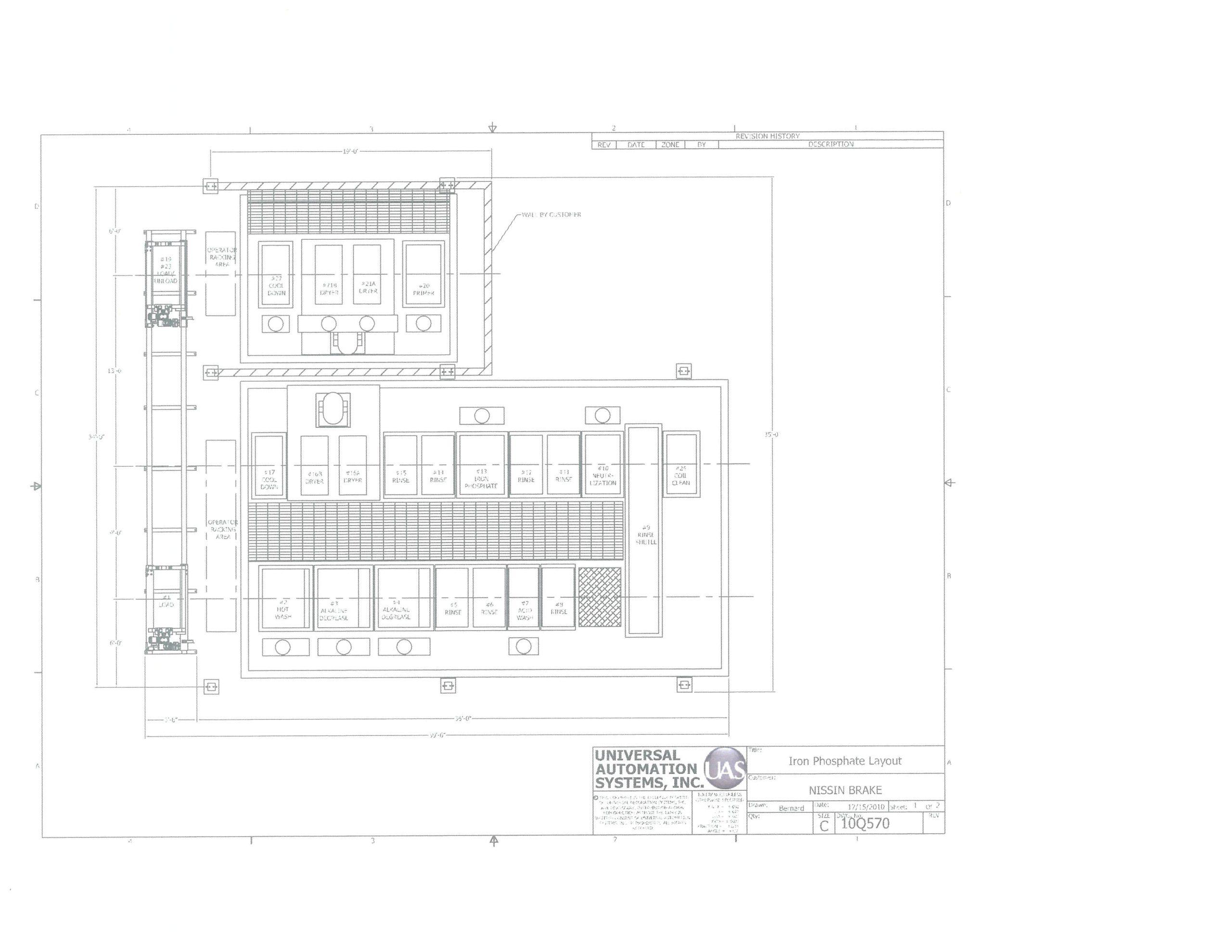

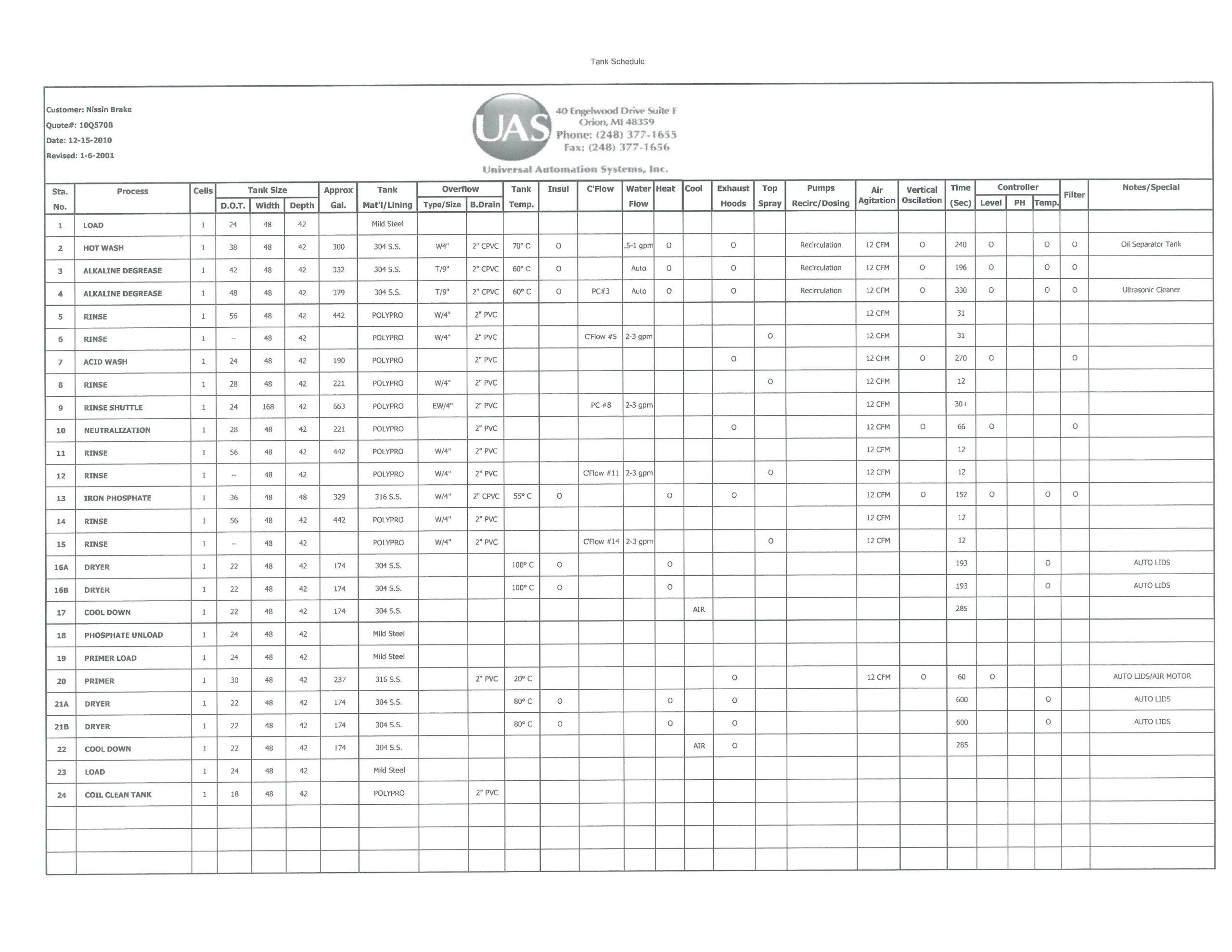

The line has 19 stations in 15 tanks with tank DOT ranging in size from 22” to 56”, tank CDOT is 48” and tank depth is 42”. A tank schedule is attached which depicts the tank sizes – we have everything from station #1 to station #18 on this list. Stations #19 – 24 were a primer application section of the line which we did not save. Also attached is the original line layout.

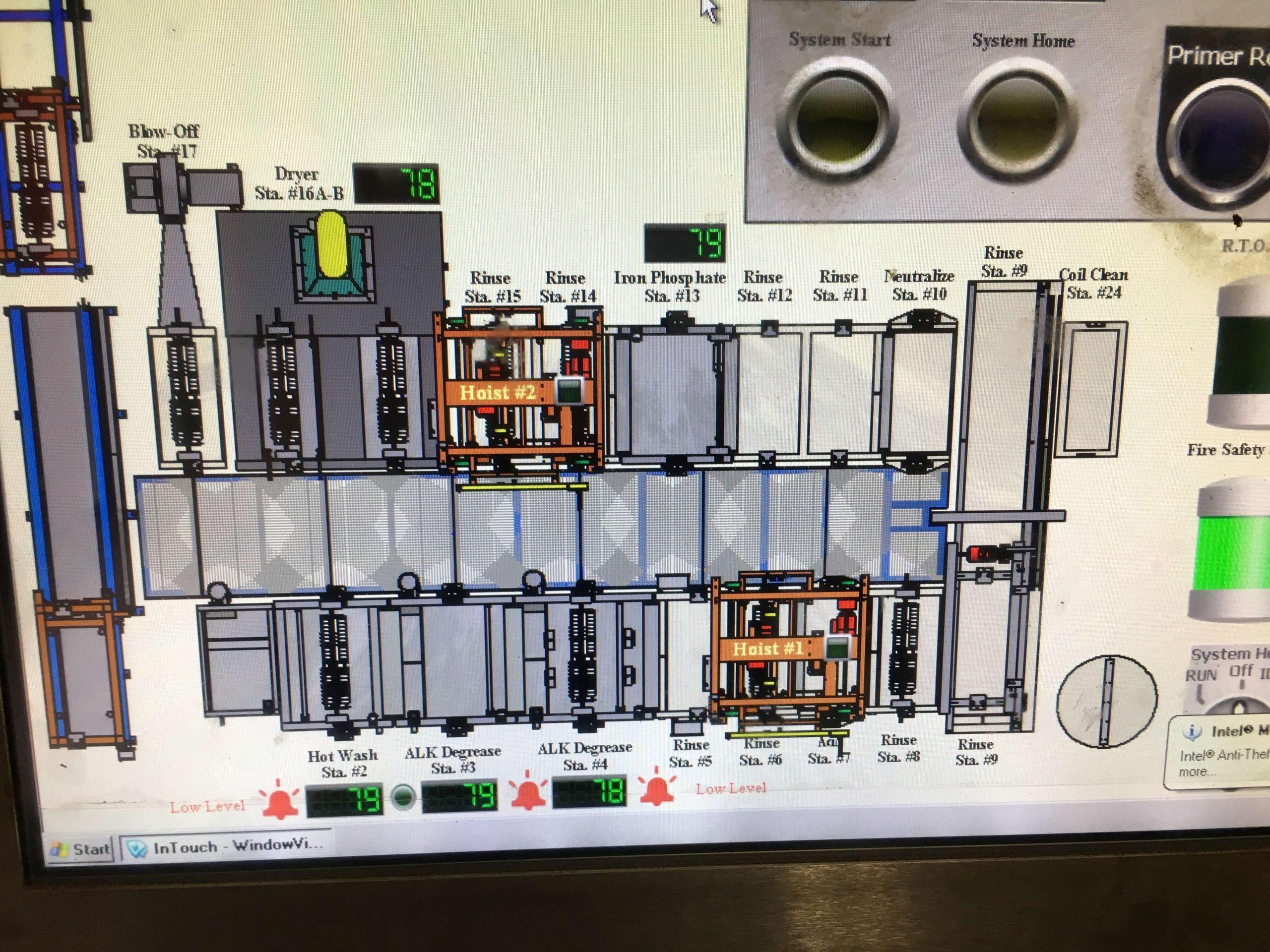

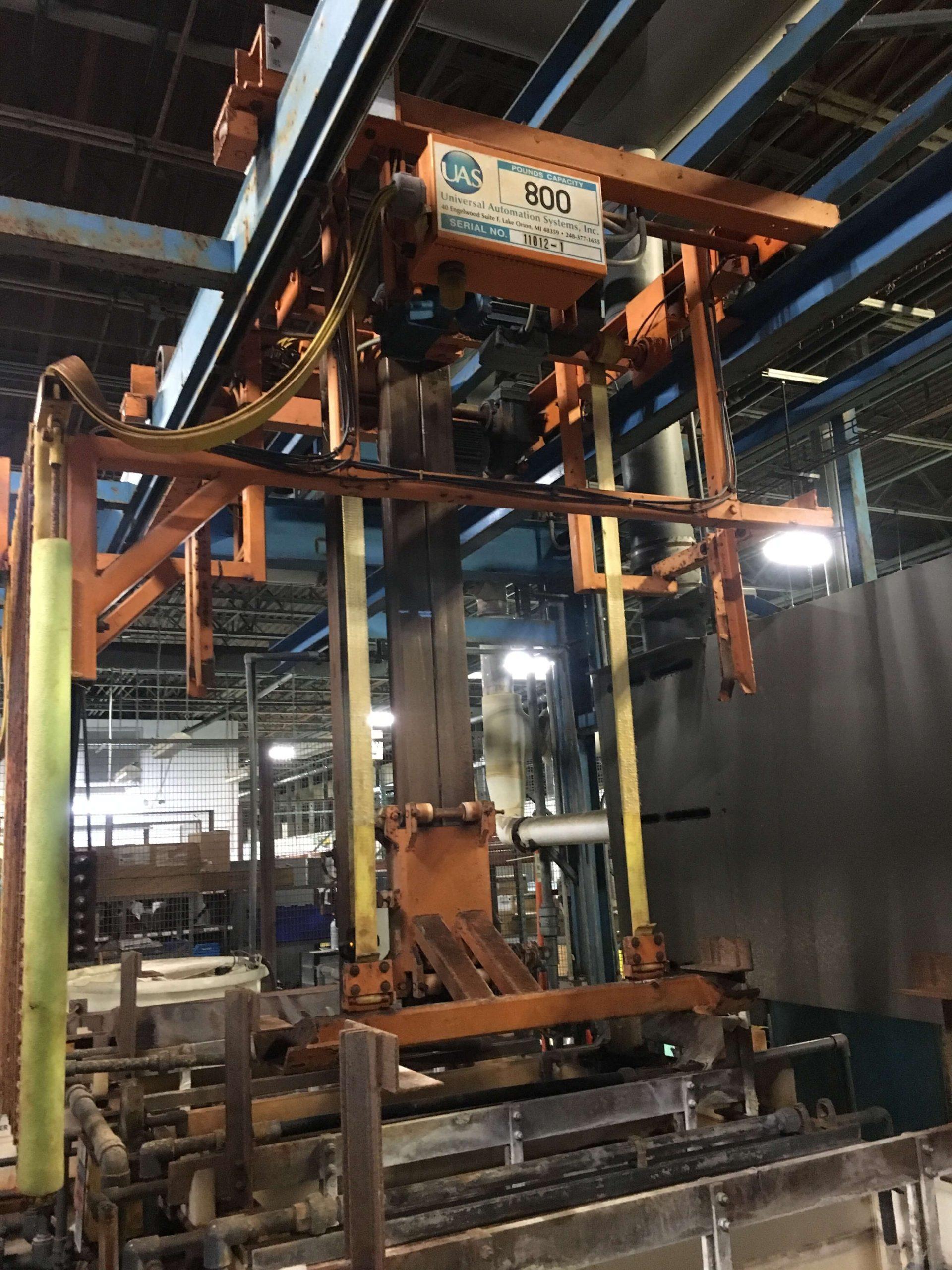

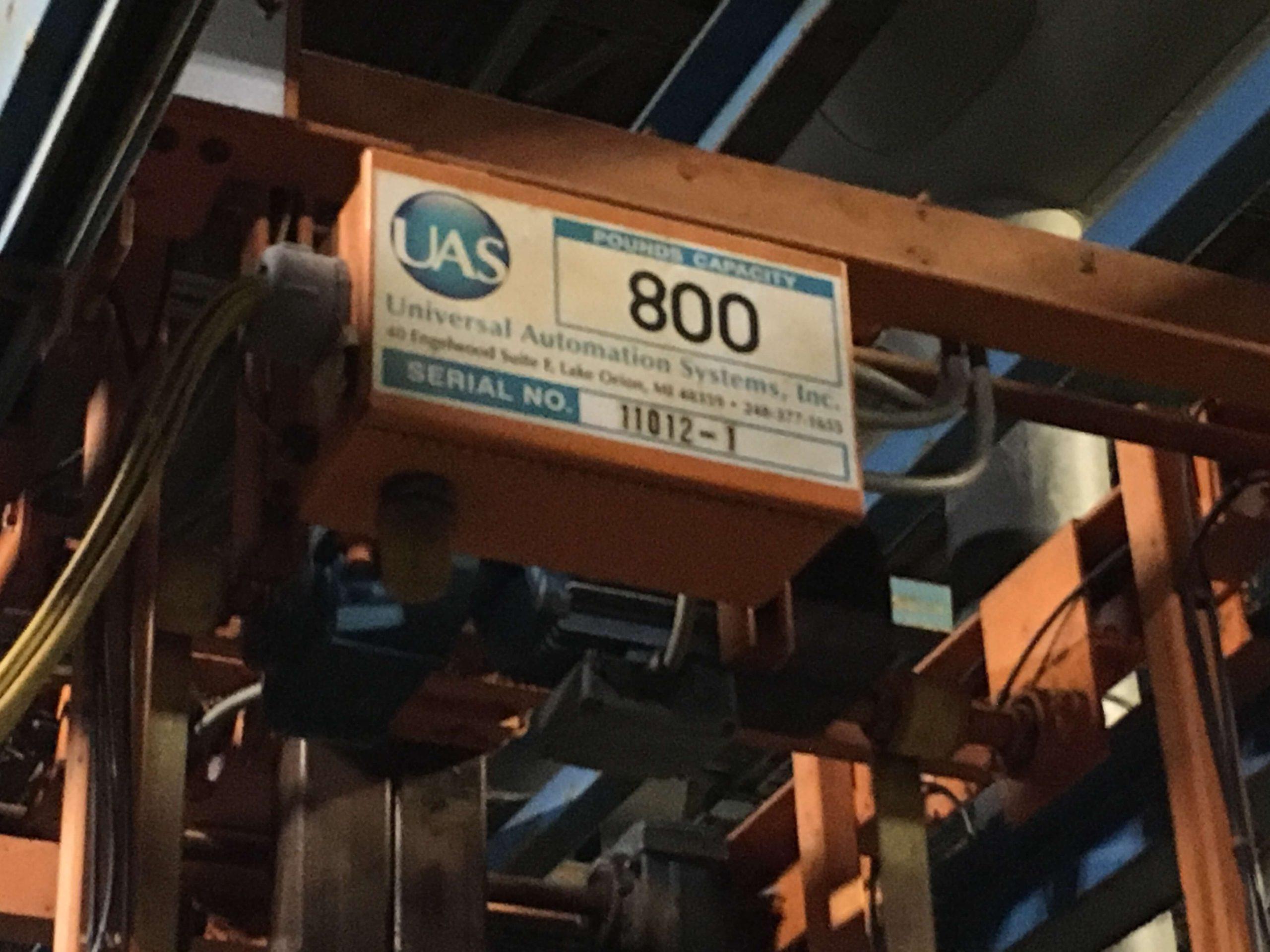

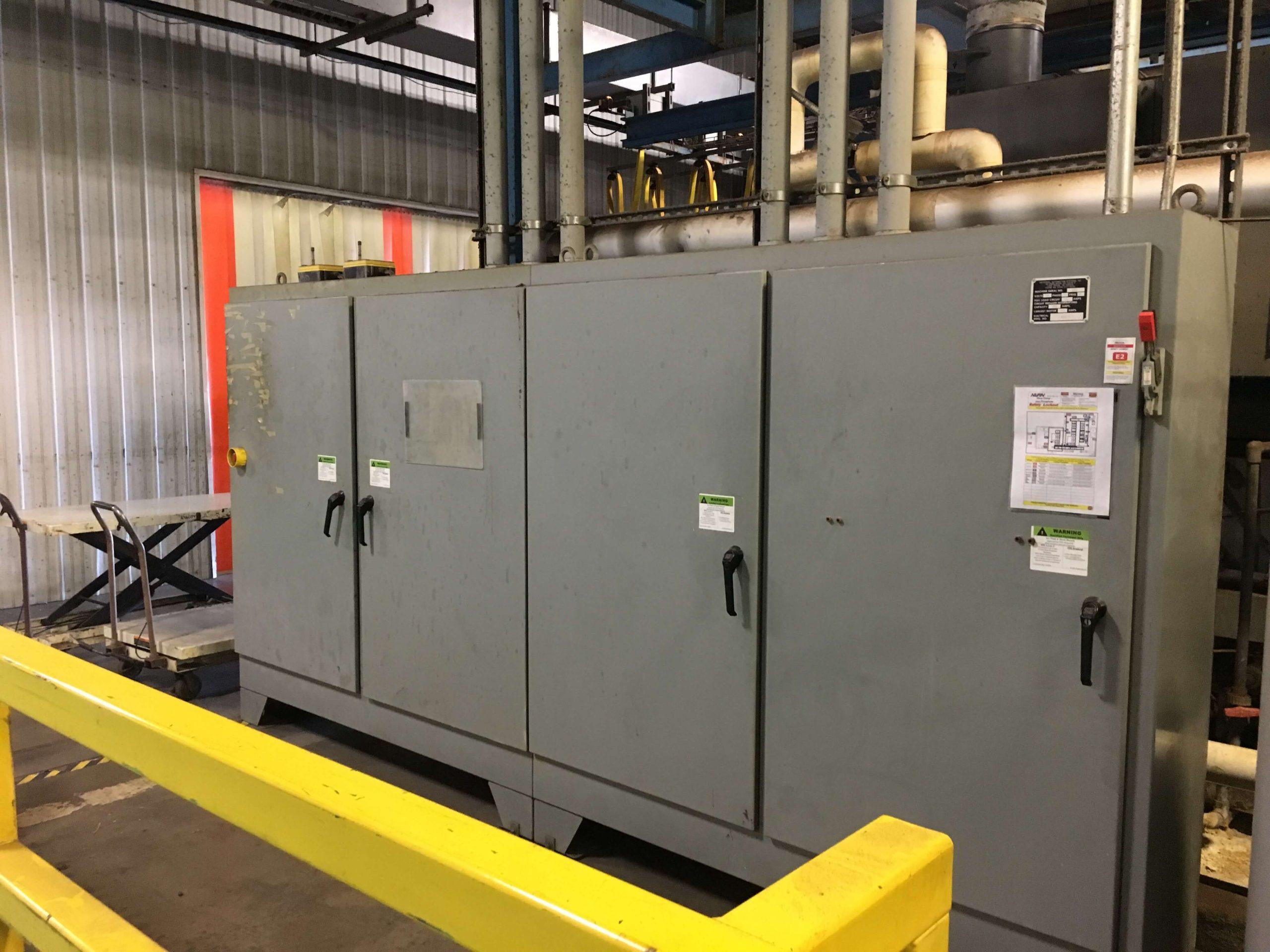

There are 2 overhead, programmable automatic hoists which can also be run in semi-automatic or manual mode via operator remote pendant. The inverted “U” shaped superstructure for the line was scrapped during the decommissioning/dismantling process and as such, is not included with the package. 1 of 2 electrical panels were scrapped so the line will need control retrofit for the automation to function.   The line also has a 2 station stainless steel dryer with forced hot air. This line could easily be converted into an anodizing or plating line with addition of the right rectifier and chiller etc. – we have this equipment available. The line could also be run in manual mode to avoid updating of the automation system.
