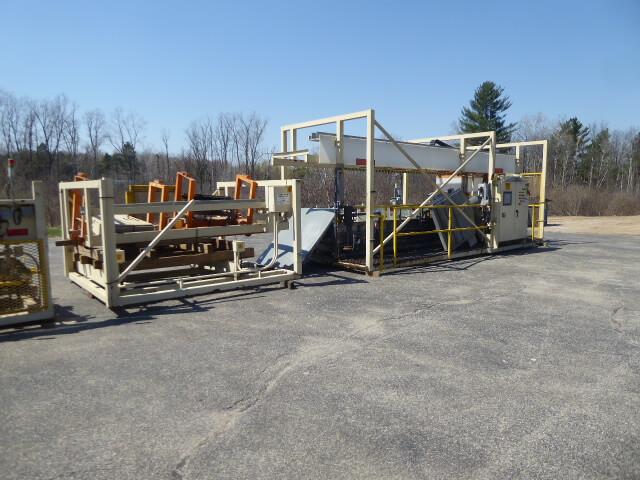

Jessup Engineering Inc. automatic hoist line with unitized construction for easy installation. \n \nIncludes 1 hoist, 8 racks, 2 steam heated rinse tanks and a heated phos tank. \n \nComplete ventilation hoods including blower. \n \n6 all stainless steel process tanks, 1 dryer and 2 load/unload stations w/ shuttle. \n \nHas remote pendent to control hoist. \n \nLine is 27'L x 10'W x 118"H. \n \nFrame is 139"L x 139"W x 69"H. \n \nShuttle is 151"L x 104"W x 79"H. \n \nSerial Number is 07153.

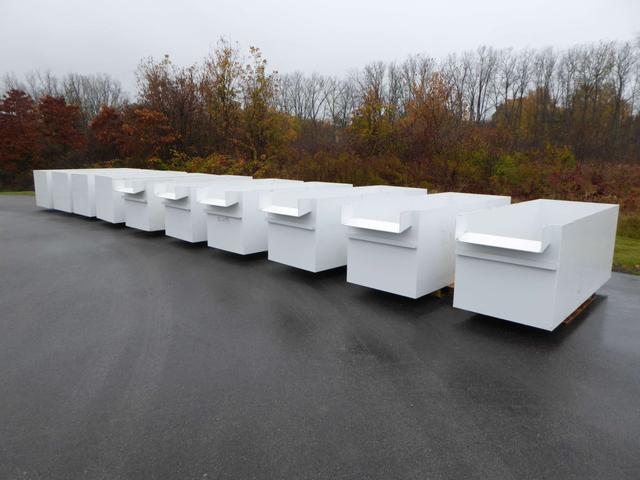

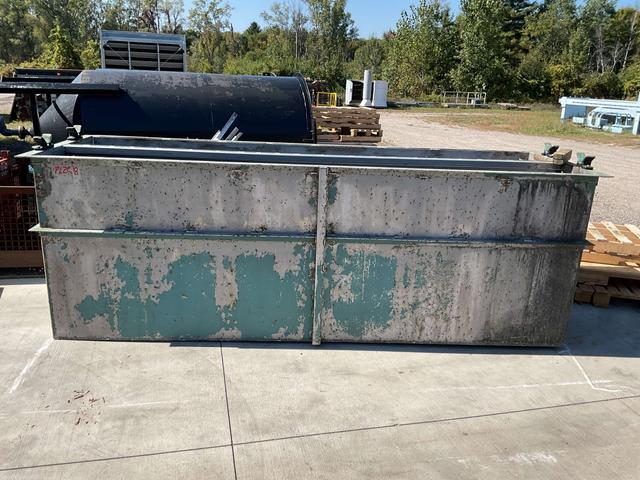

There are 2 Double Station, Titanium Tanks \n \nInside dimensions of each: 139″L x 38.50″ W x 48″H with 3″ Support Band around the tank. \n \nThere are 2 Single Station, Stainless Steel Tanks \n \nInside dimensions of each: 139″L x 20″W x 48″H with 2″ Supports Bands around the tanks. \n \n1″ Inlet/Outlet \n \nThere is 1 Double Station, Stainless Steel Tank \n \nInside dimensions: 139″L x 20″W x 48″H with 2″ Support Band \n \nTwo 2″ Inlets and Outlets.

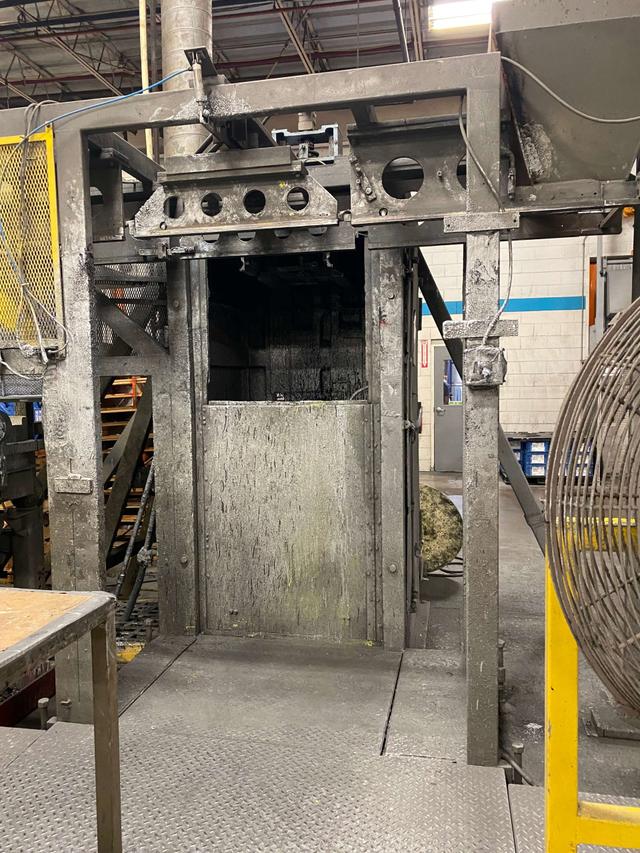

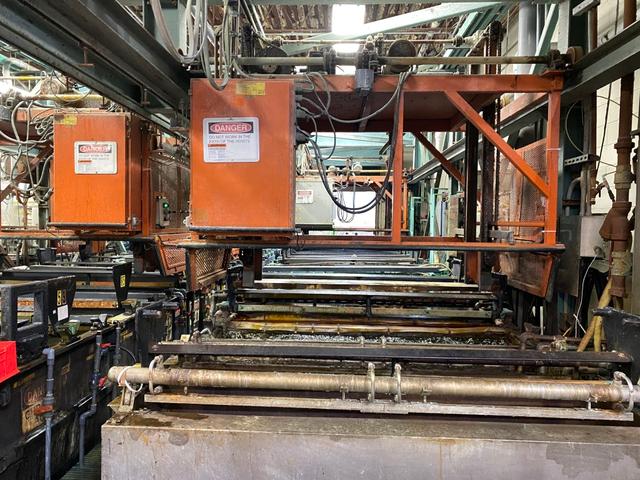

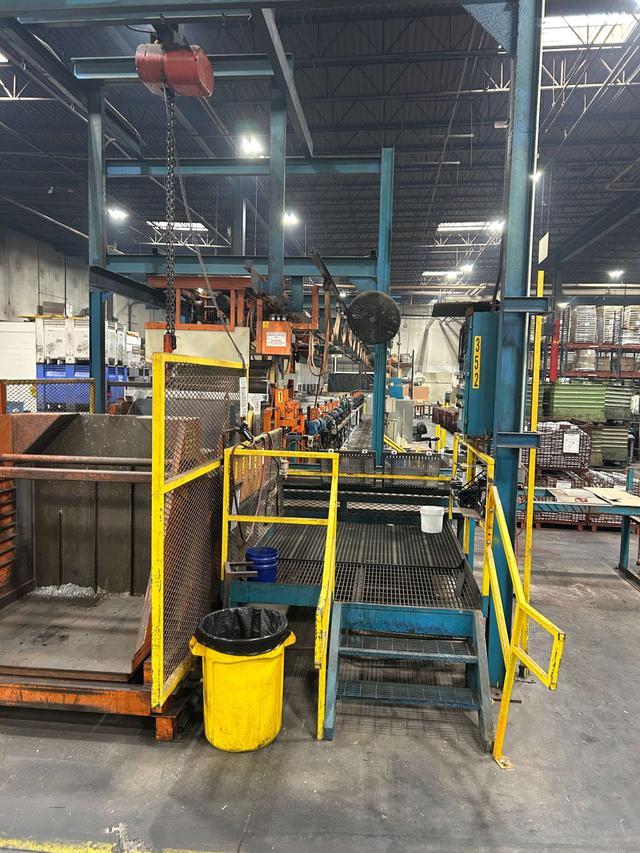

Single Leg Overhead Hoist Line.\n\nJessup automatic barrel phosphate line with 1 programmable overhead hoist.\n\nThis line includes a tilt dump hopper and barrel loader system on the front end as well as a dry shuttle for barrel unloading.\n\nAlso included is the roof mounted Metpro scrubber and blower, line superstructure, approximately 10 stainless steel tank driven phosphating barrels.\n\nBarrels are 18” x 48” cylinder capacity.\n\nThe line has 17 stations in 16 tanks with tank DOT ranging in size from 44” to 60”, tank CDOT is 60” and tank depth is 48”.\n\nHeat for this line is low pressure steam.\n\nA line layout is attached which depicts the tank sizes.\n\nThis line was well maintained and is immediately available.

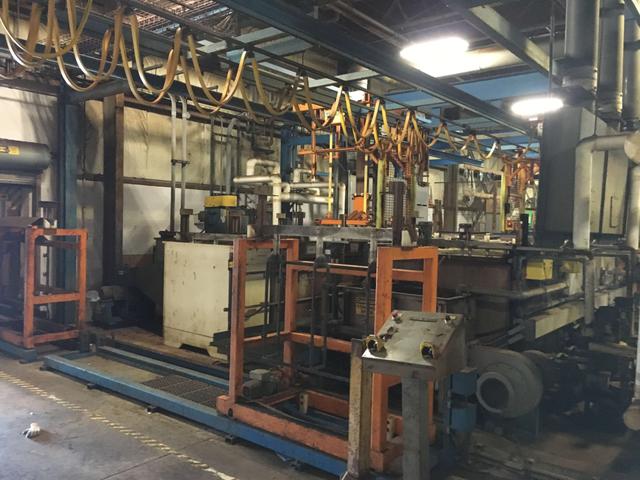

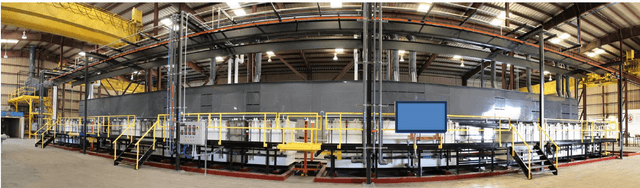

This line is a U-shaped automated line complete with automatic transfer end shuttle tank. The line was built by UAS and was used for iron phosphate for a period of 4 years prior to being professionally cleaned and decommissioned.\n\nThe line has 19 stations in 15 tanks with tank DOT ranging in size from 22” to 56”, tank CDOT is 48” and tank depth is 42”. A tank schedule is attached which depicts the tank sizes – we have everything from station #1 to station #18 on this list. Stations #19 – 24 were a primer application section of the line which we did not save. Also attached is the original line layout.\n\nThere are 2 overhead, programmable automatic hoists which can also be run in semi-automatic or manual mode via operator remote pendant. The inverted “U” shaped superstructure for the line was scrapped during the decommissioning/dismantling process and as such, is not included with the package. 1 of 2 electrical panels were scrapped so the line will need control retrofit for the automation to function.   The line also has a 2 station stainless steel dryer with forced hot air. This line could easily be converted into an anodizing or plating line with addition of the right rectifier and chiller etc. – we have this equipment available. The line could also be run in manual mode to avoid updating of the automation system.

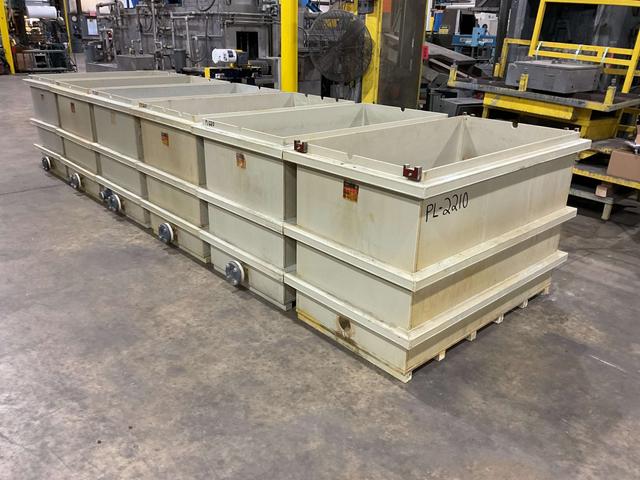

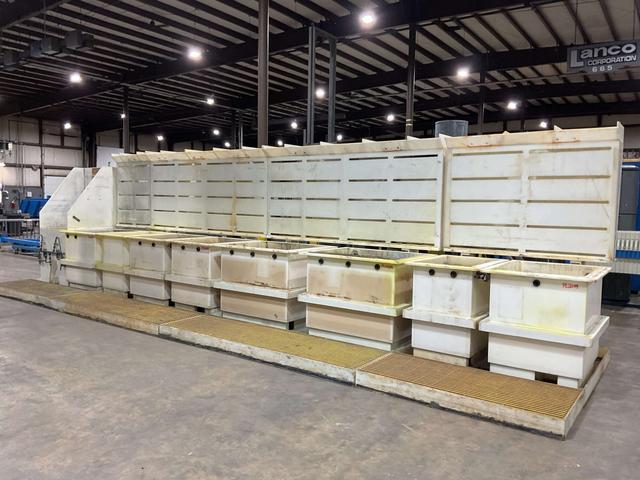

Poly-Pro Construction. \n \n5.50" Deep Spill Trays. \n \n30" Wide Fiberglass Cat Walk. \n \n(4) Fume Hood. \n \nWash/Rinse Station. \n \n(2) 28"L x 22"W x 34"H \n \n(3) 28"L x 30"W x 34"H \n \n(1) 28"L x 34"W x 34"H \n \n(2) 28"L x 41"W x 34"H \n \n100" OAD Height Including Hood. \n \nFull Van Shipment. Estimated Weight is 4,500 lbs.

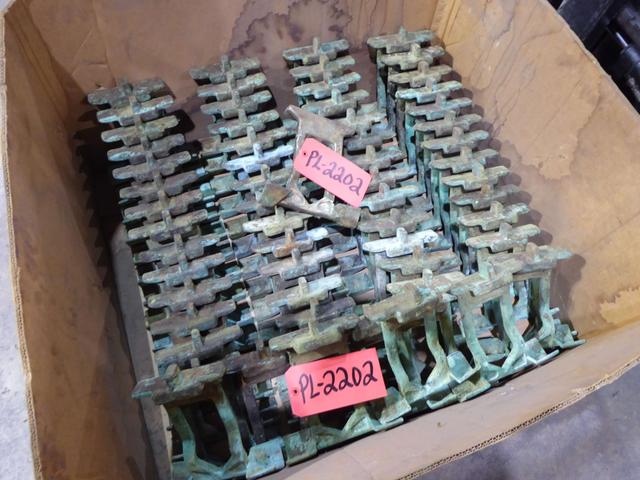

Rack holders for Udylite, Napco and Fanta split rail return type machines.\n\nCapacity per rack:  175 lbs.\n\n

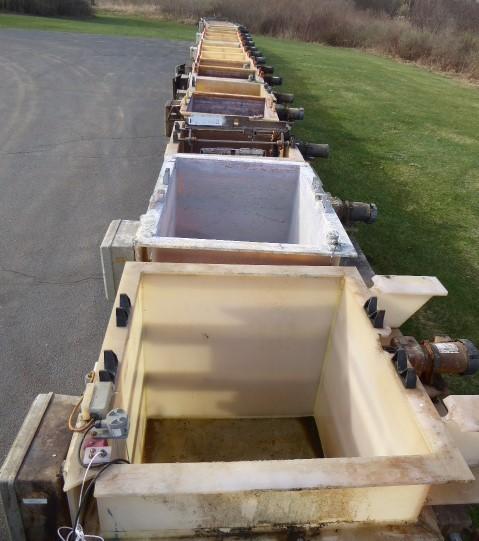

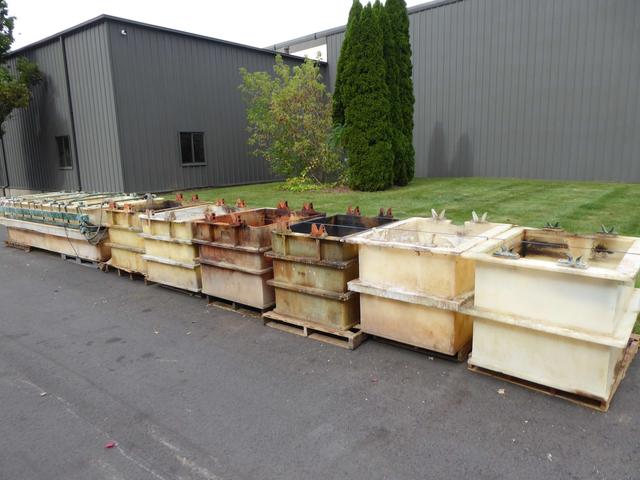

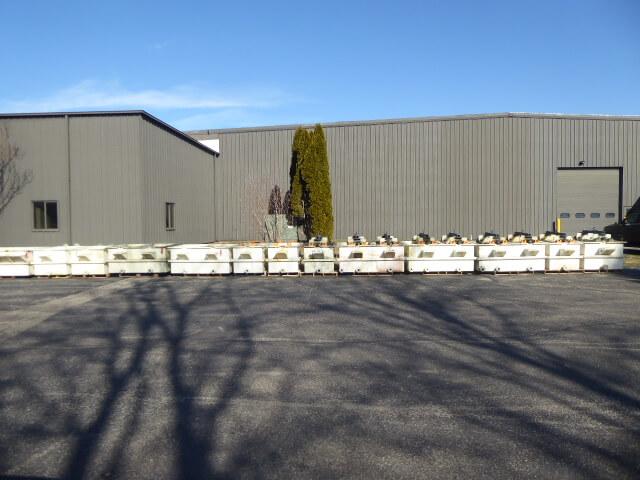

Poly-Pro Construction with Support Bands. \n \nNeeds Motors & Gear Boxes. \n \nAll Tanks Have Drains but 3-Station Tank. \n \nBarrels:  (8) 18" x 30" - 1/8" Perf.  (1) 10" x 18" Mini 1/16" Perf. \n \n(1) Single Station: 44" FTB x 42" DOT x 30"H \n \n(2) Single Stations: 44" FTB x 37" DOT x 30"H. \n \n(4) Single Stations: 44" FTB x 32"DOT x 30"H. \n \n(2) 2-Station: 44" FTB x 68"DOT x 30"H. \n \n(4) 2-Station with Counter Flow: 44" FTB x 71" DOT x 30"H. \n \n(1) 3-Station: 44" FTB x 90" DOT x 30"H. \n \nShips in Full Van. \n \nEstimated Weight is 10,000 lbs.

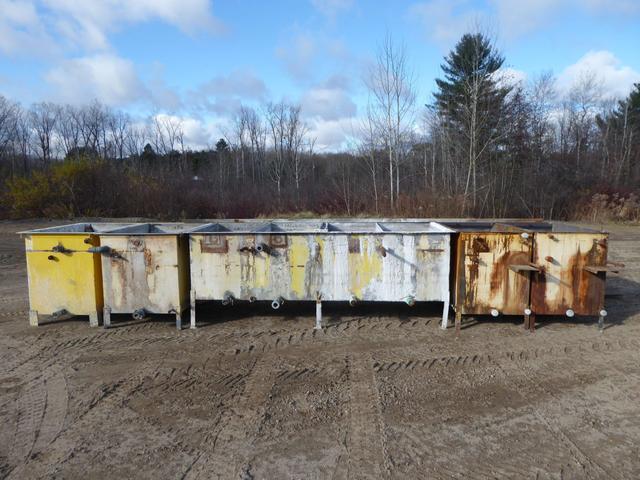

Includes tanks, barrels and superstructure. Stainless steel tanks with drains on bottom. \n \n(4) Air Driven Stainless Steel Barrels with 1/8" Perfs: 14"D x 30" L \n \n(1) Air Driven Poly Barrel with 1/16" Perfs: 16"D x 30"L \n \n(1) 4 Station tank - each station 27" DOT x 50 FTB x 32"H \n \n(2) Tanks: 32" DOT x 55" FTB x 37"H \n \n(1) Tank: 35" DOT x 51" FTB x 38" H \n \n(1) Tank: 32" DOT x 49" FTB x 39"H \n \nSee Attached Layout for Current Process.

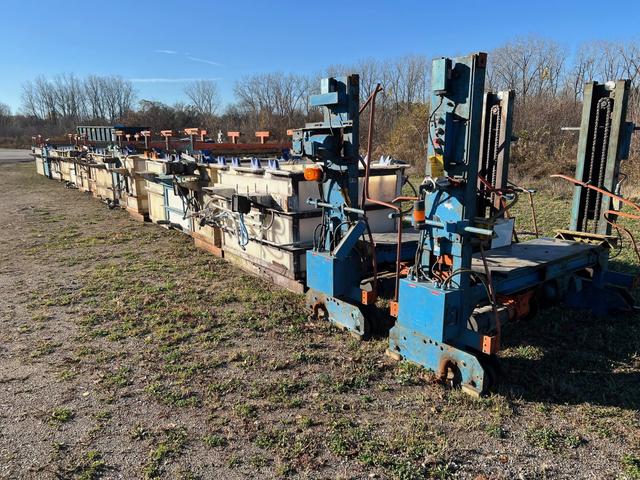

Estimated weight is 10,000 lbs. (19) Barrel drives 230/460 volt, 3 Phase. (3) Stainless steel part tumble fixtures. \n \n(3) 3-Station tanks with counter flow rinse 45" FTB x 42" DOT x 41"D. \n \n(2) 1-Station tanks 45"FTB x 60" DOT x 41"D. \n \n(6) 1-Station tanks 45" FTB x 45"DOT x 41" D. \n \n(2) 1-Station stainless steel insulated tanks 45"FTB x 64"DOT x 41"D. \n \n(2) 1 Ton manual hoists with trolley.
