Jessup 17 Station Automatic Barrel Line PL2217CN

$139,900.00

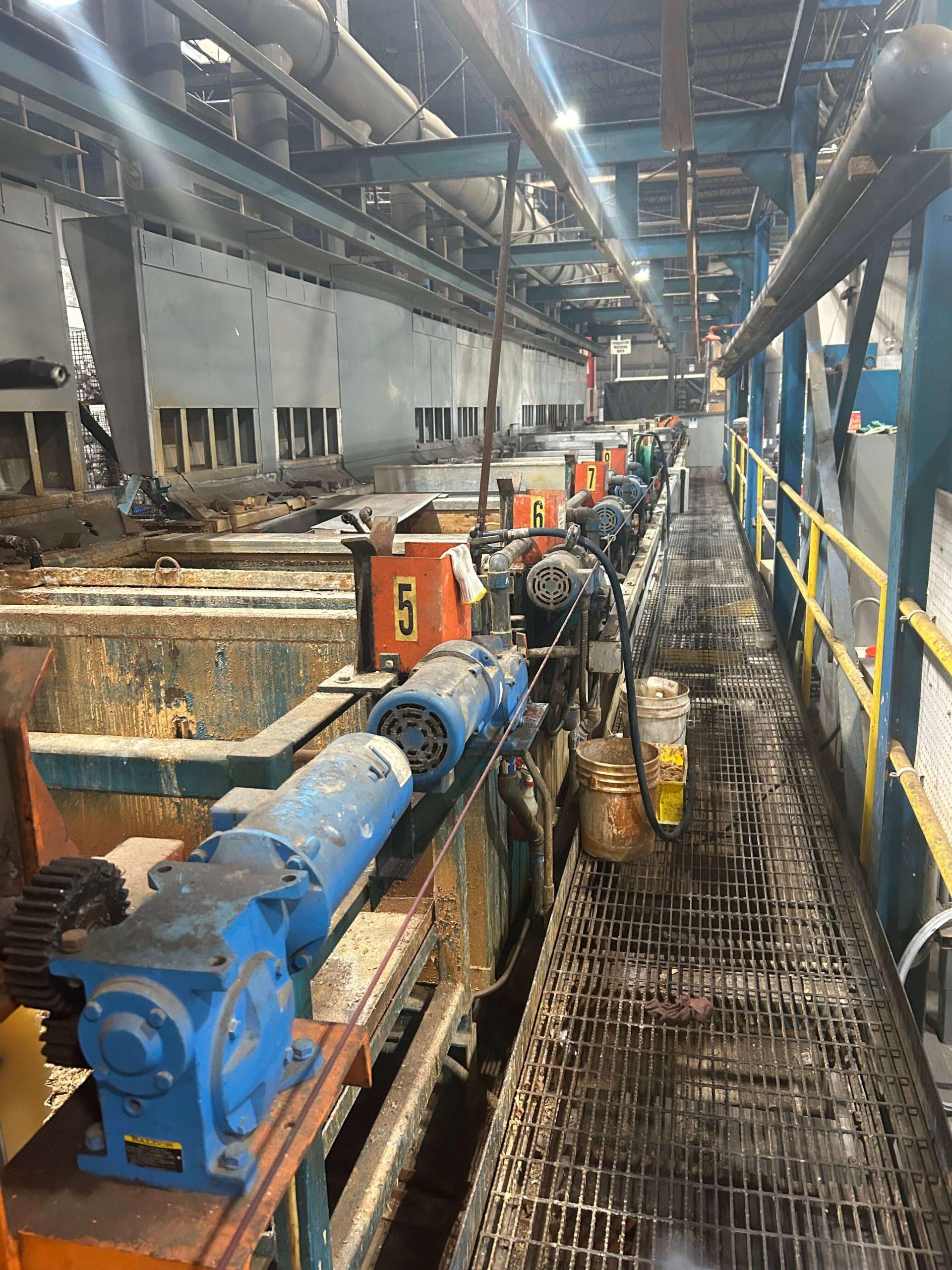

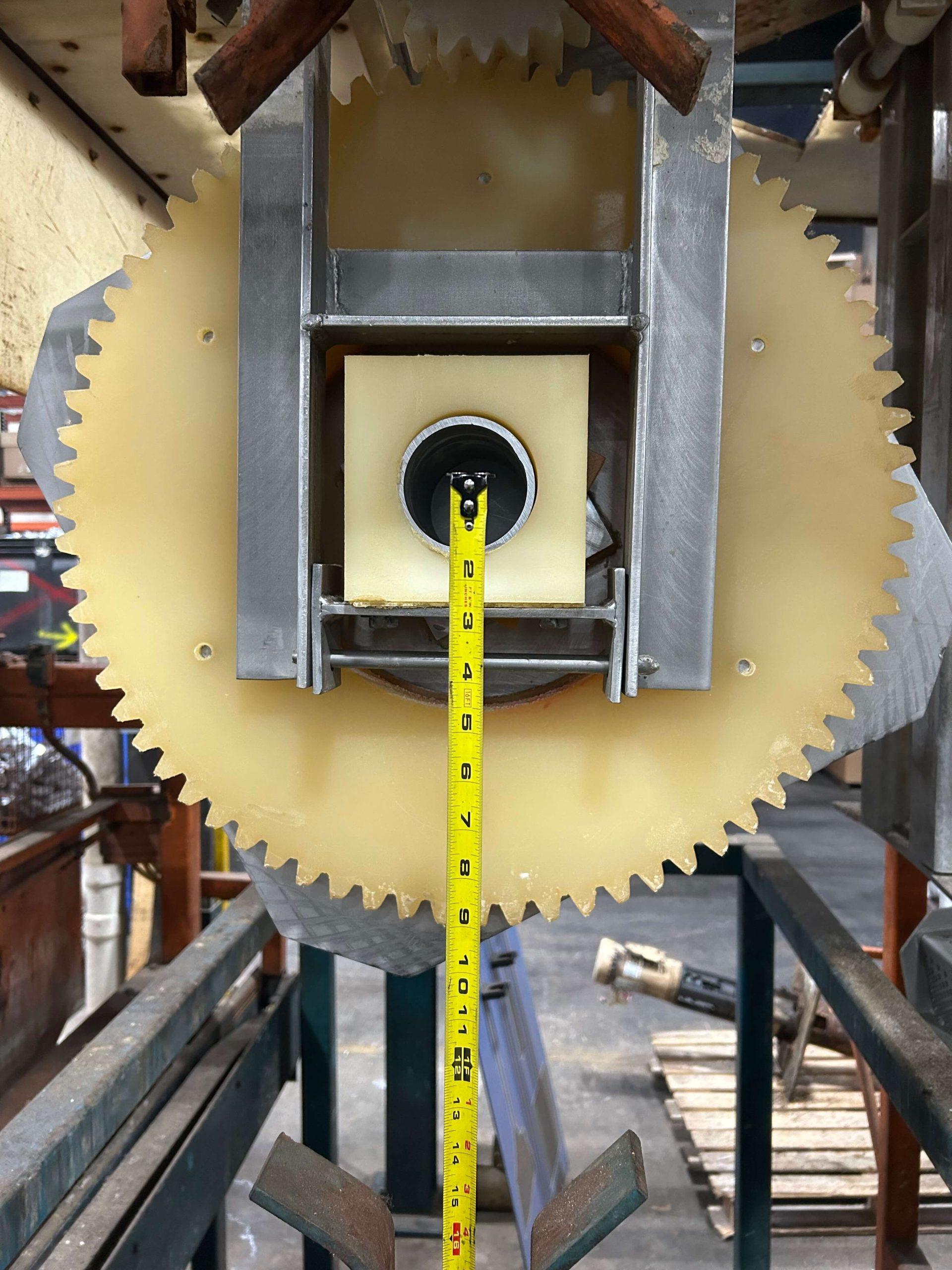

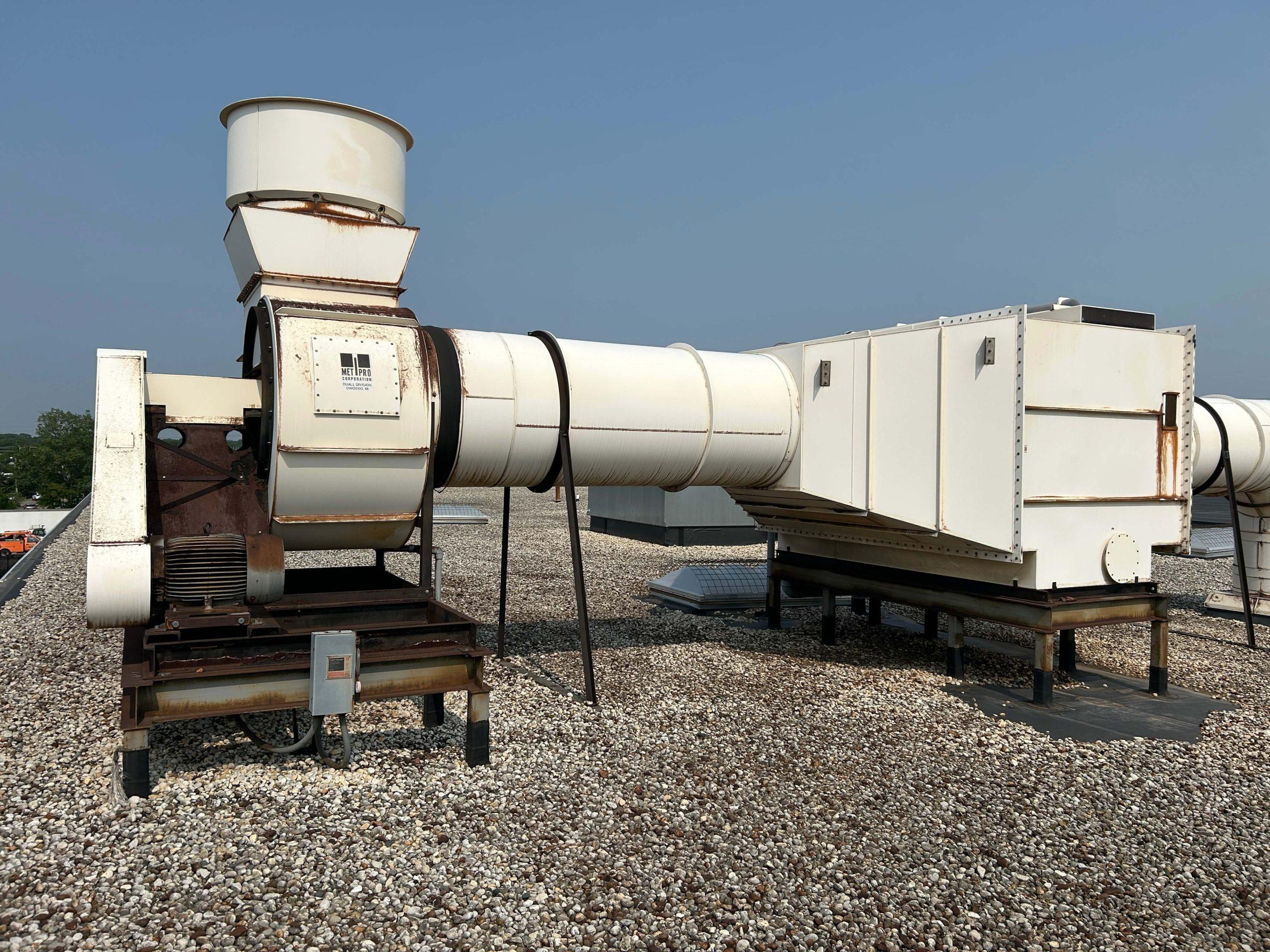

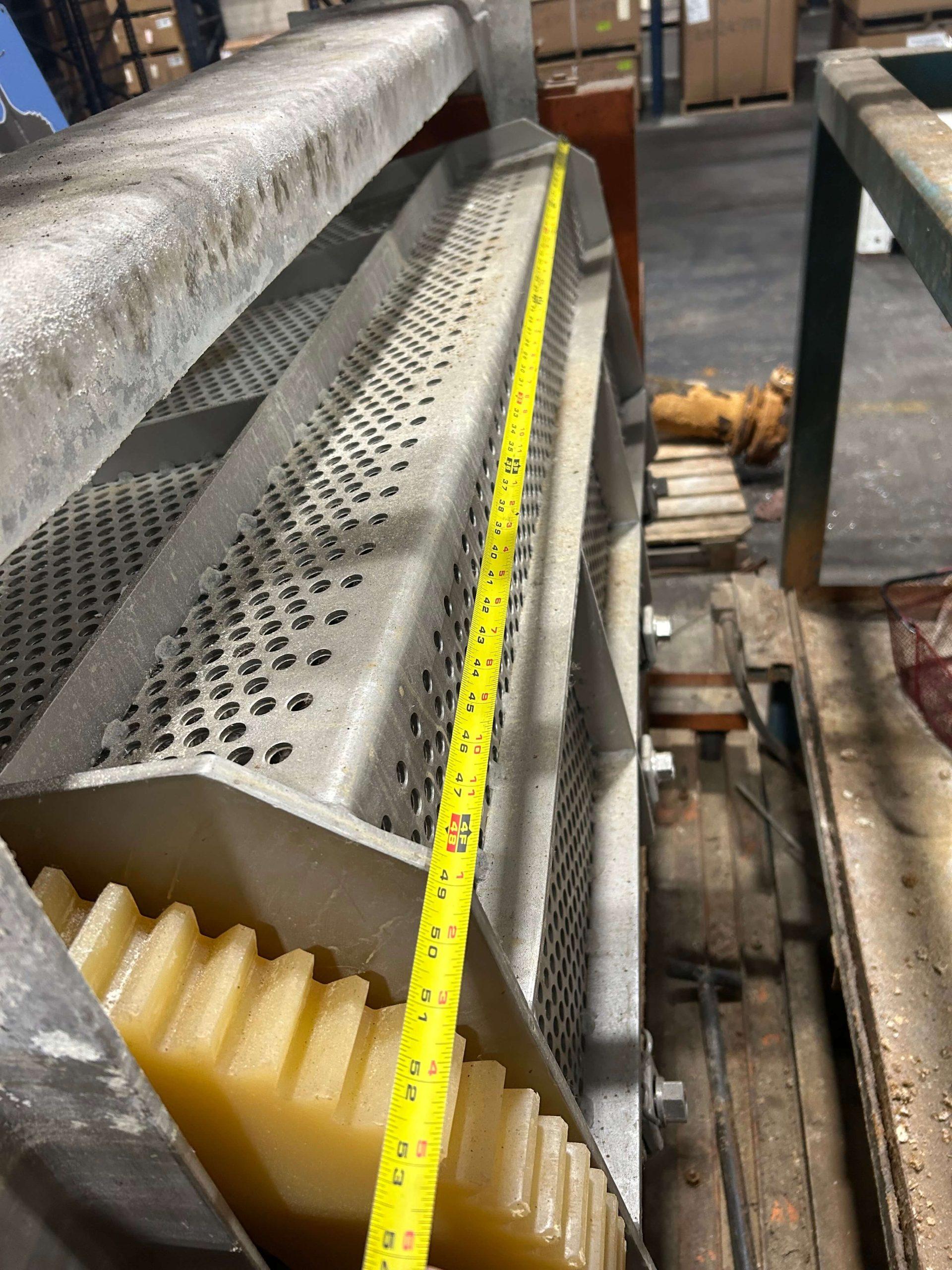

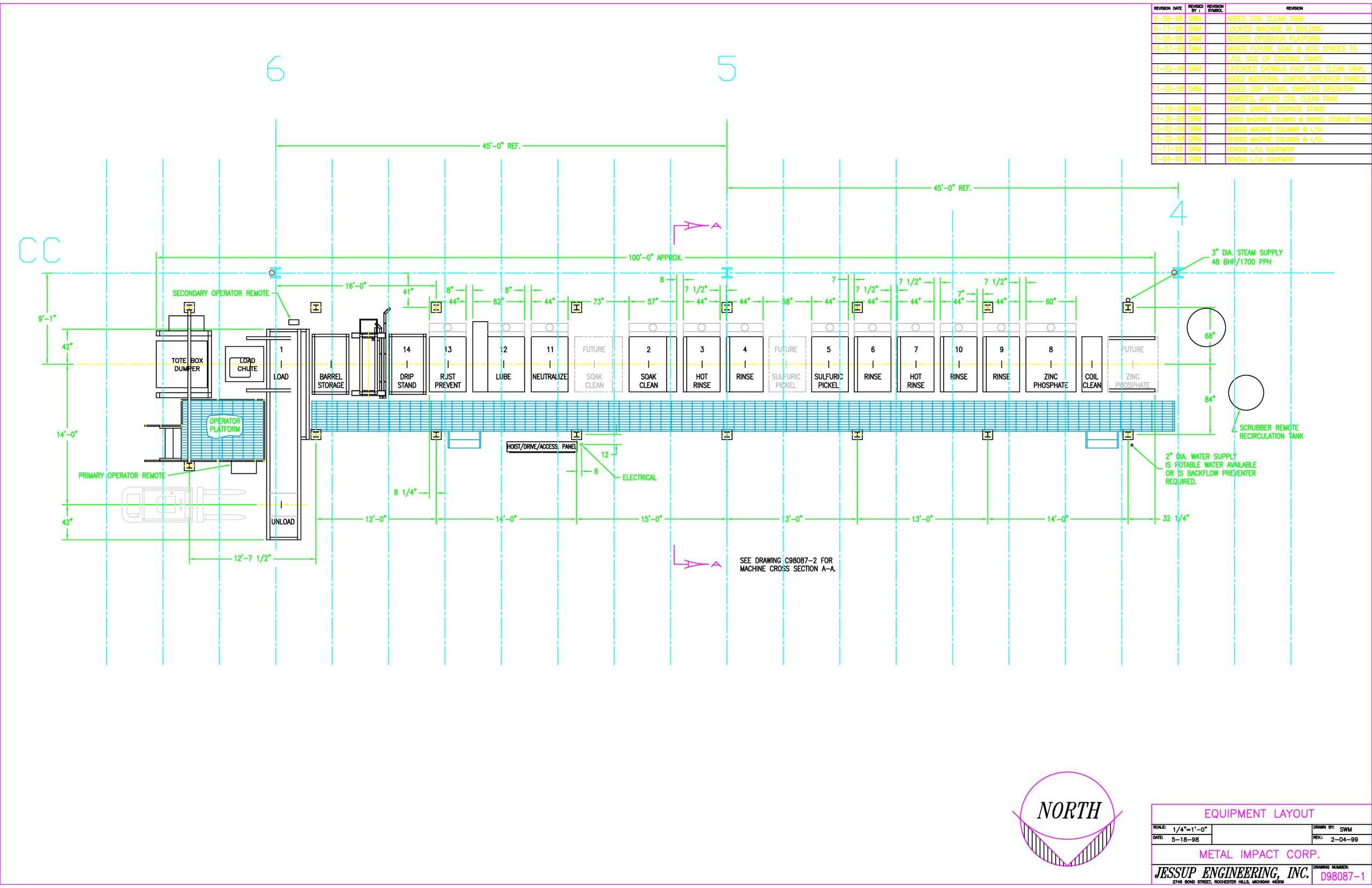

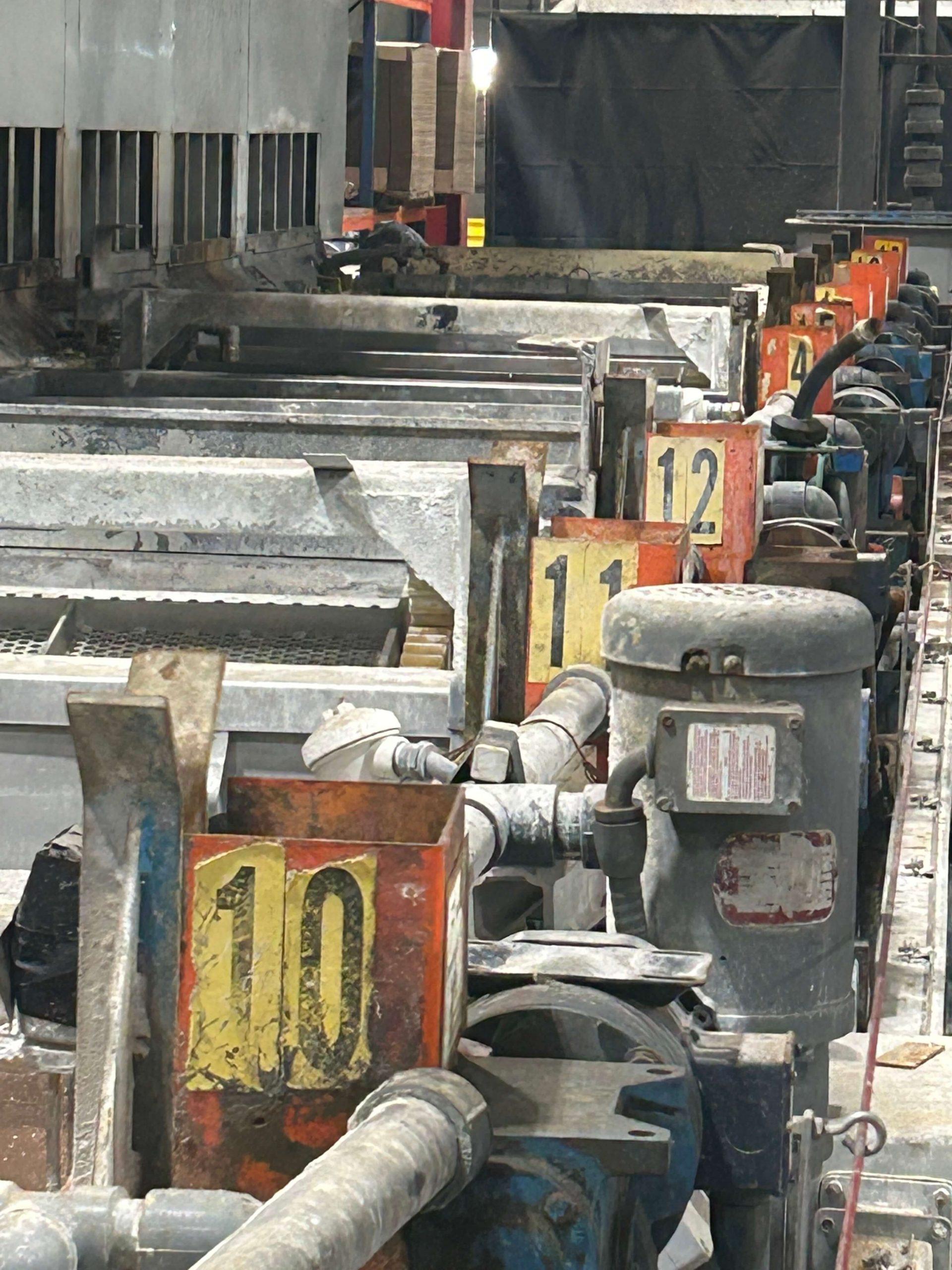

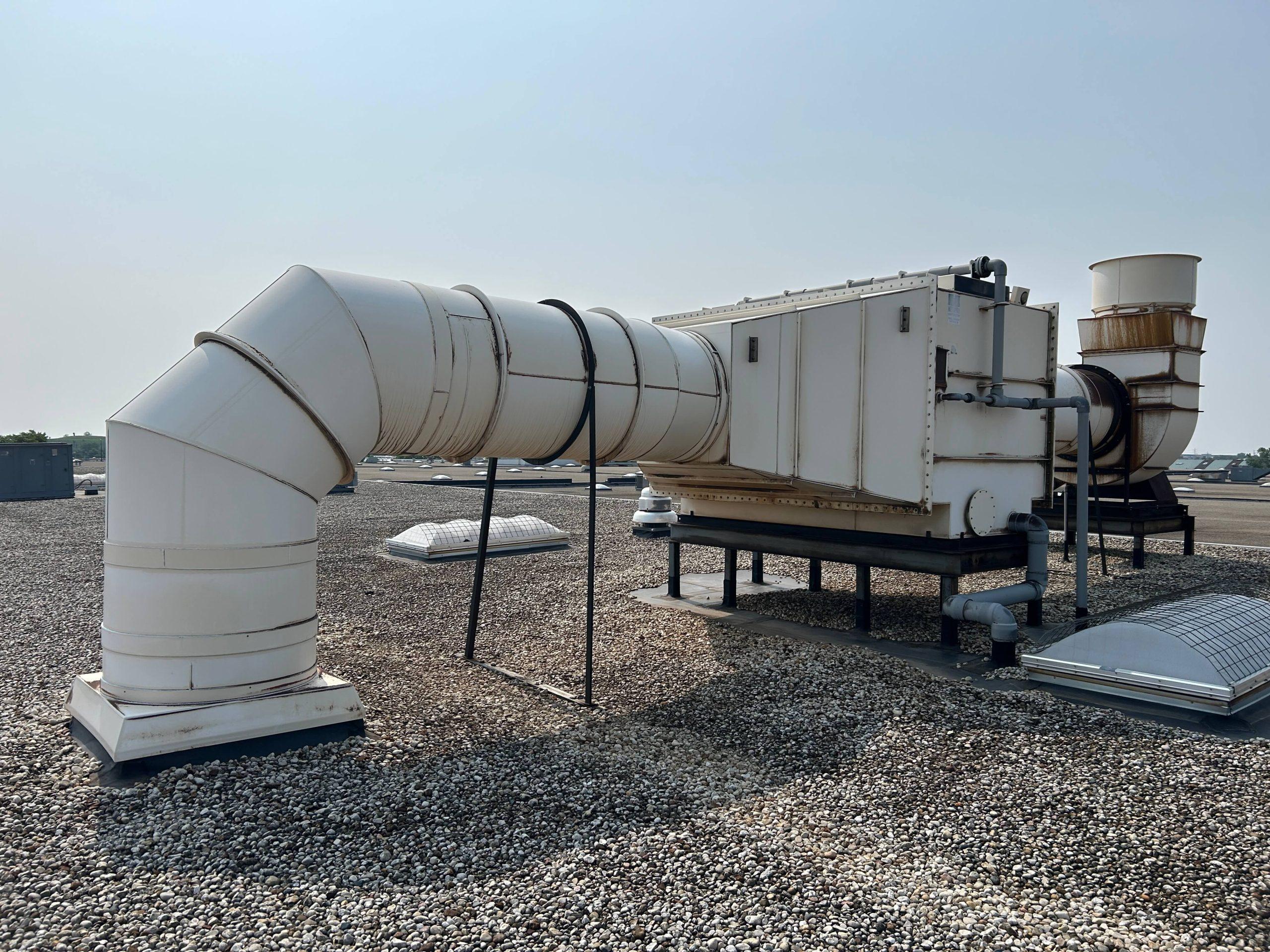

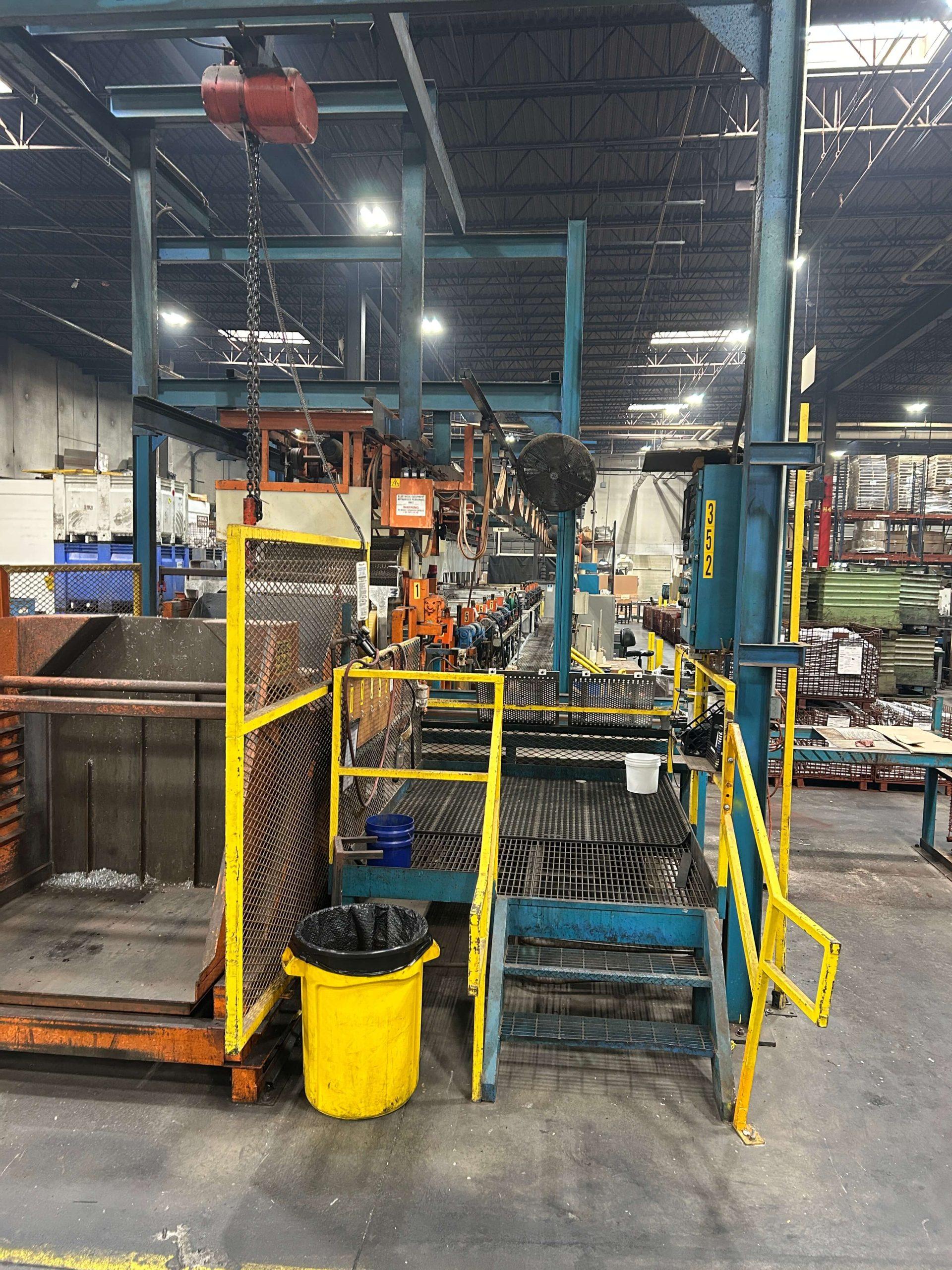

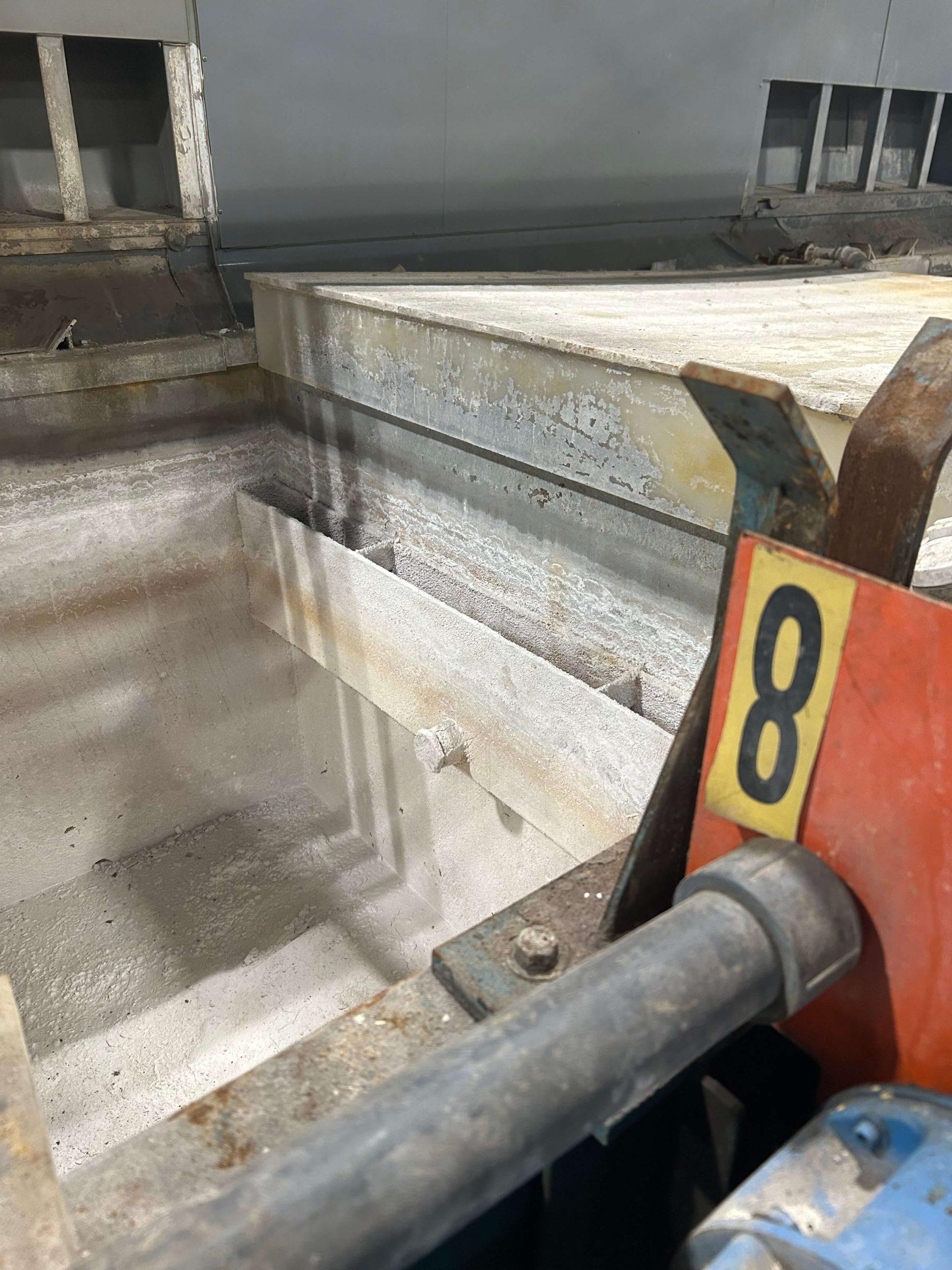

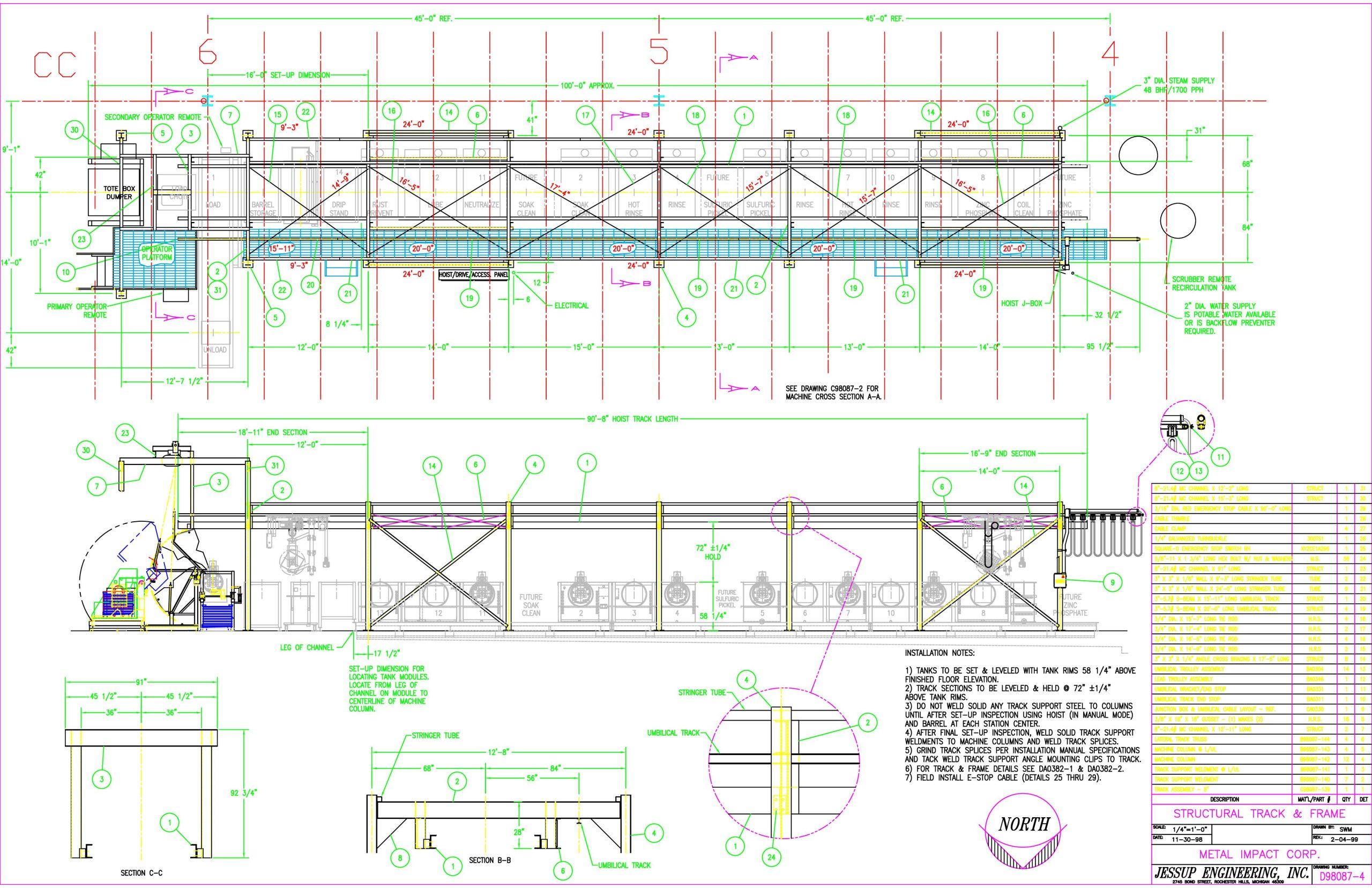

Single Leg Overhead Hoist Line.\n\nJessup automatic barrel phosphate line with 1 programmable overhead hoist.\n\nThis line includes a tilt dump hopper and barrel loader system on the front end as well as a dry shuttle for barrel unloading.\n\nAlso included is the roof mounted Metpro scrubber and blower, line superstructure, approximately 10 stainless steel tank driven phosphating barrels.\n\nBarrels are 18” x 48” cylinder capacity.\n\nThe line has 17 stations in 16 tanks with tank DOT ranging in size from 44” to 60”, tank CDOT is 60” and tank depth is 48”.\n\nHeat for this line is low pressure steam.\n\nA line layout is attached which depicts the tank sizes.\n\nThis line was well maintained and is immediately available.
1 in stock
Jessup 17 Station Automatic Barrel Line PL2217CN

NEW / USED

Used

STOCK LOCATION

60007

INVENTORY

PL2217CN

MANUFACTURER

Jessup

TESTED BY

VW

TYPE

Automatic Barrel

STATIONS

17

CURRENT-PROCESS

Zinc Phosphate & Lube

SIZE

60"L x 44"W x 48" D

OVERALL-SIZE

100'L x 23'W x 17'H

PLATING-STATIONS

2

STYLE

Automatic
