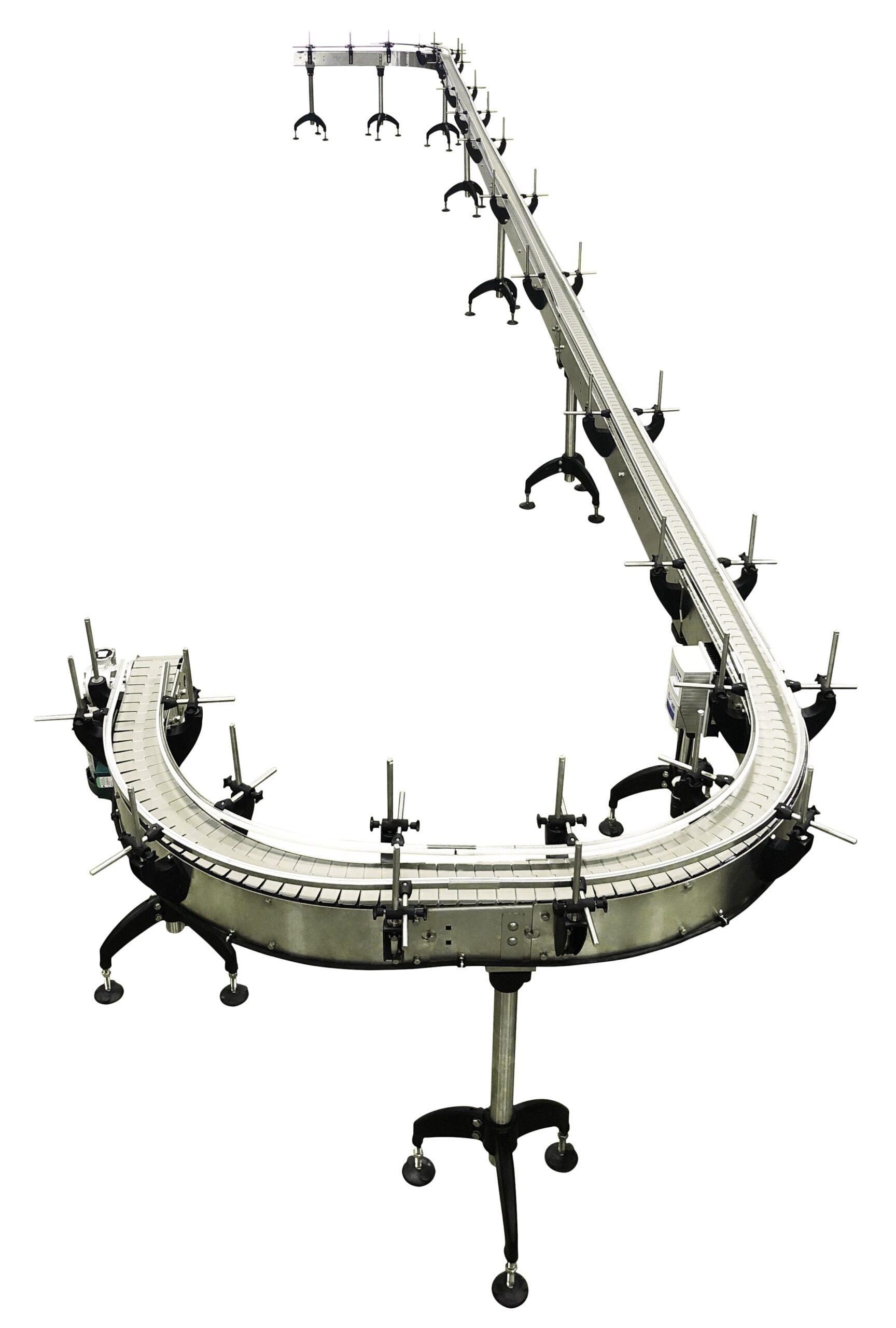

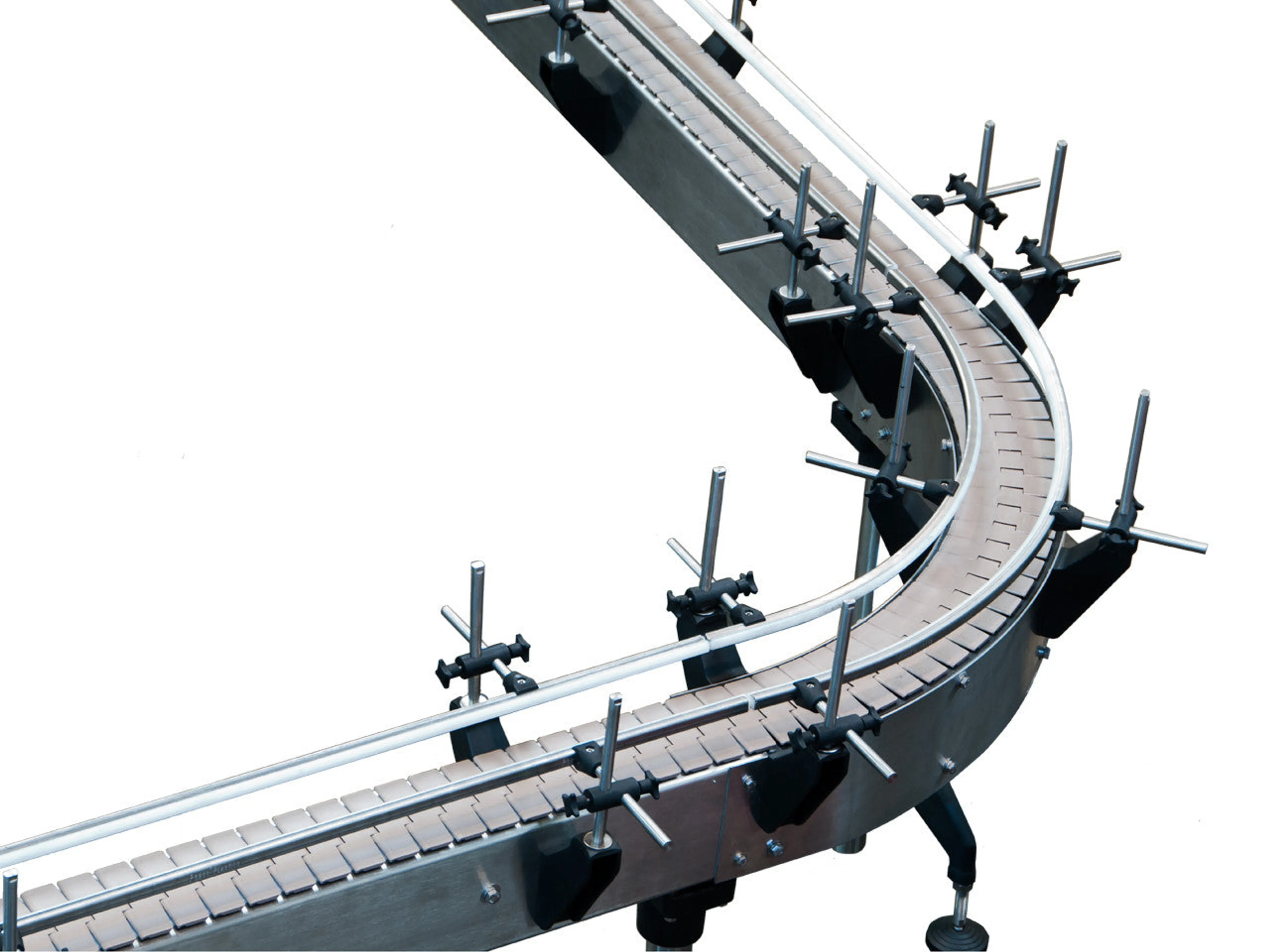

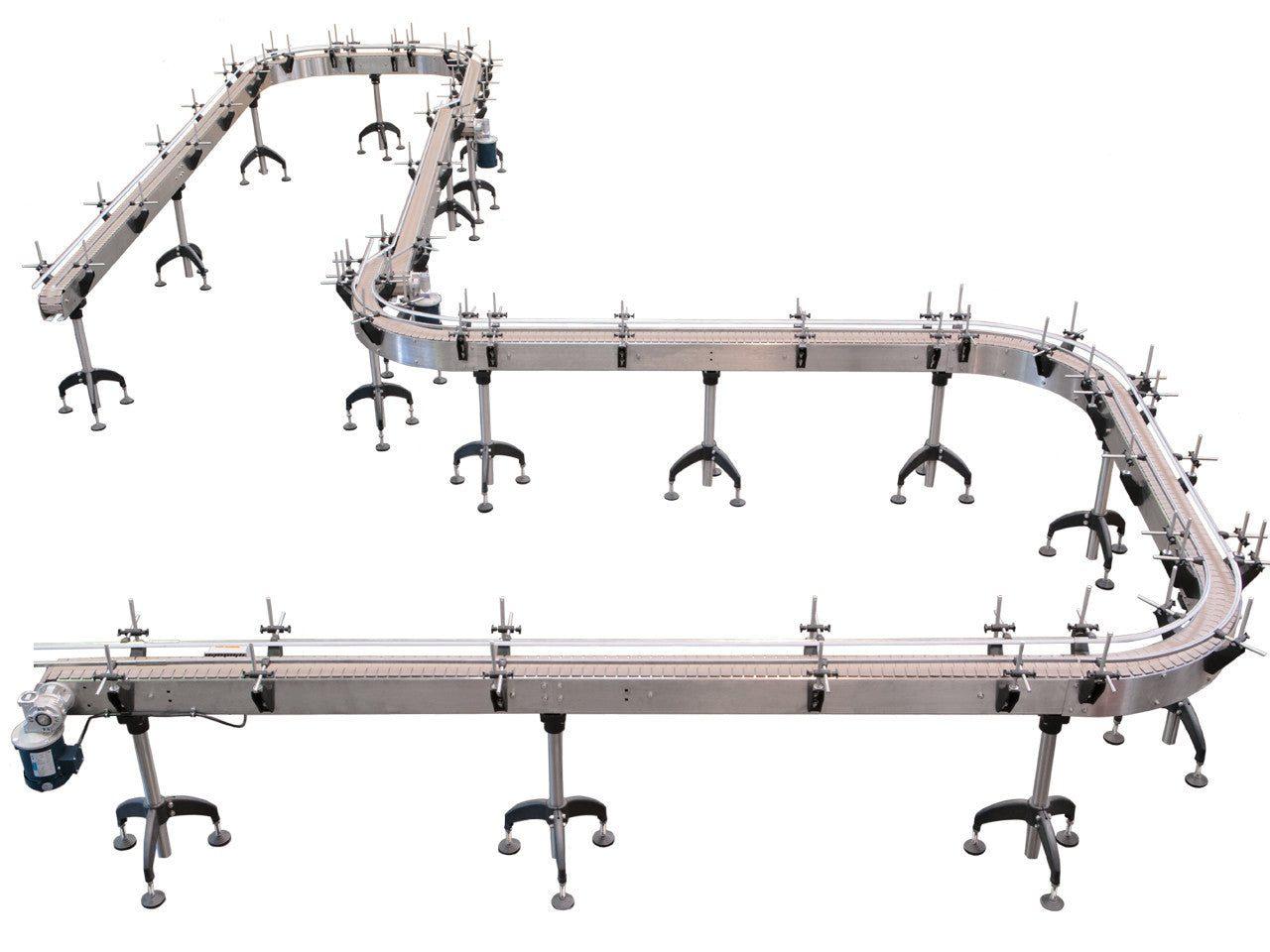

Custom or Curve Conveyor

Acasi machinery manufactures standard conveyors for all their machines as well as custom conveyors for all customers. All of their conveyors are manufactured in stainless steel and have tool-less guide rail adjustments.

Custom Order Conveyors:

All custom order conveyors are subject to standard straight running conveyor pricing, plus additional upgrade charges.

4.5 in. Standard Features:

• 304 stainless steel construction.
• Acetyl 4.5 inches straight running chain.
• 1/2 HP AC motor.
• Variable speed drive installed in filling machine electric panel.

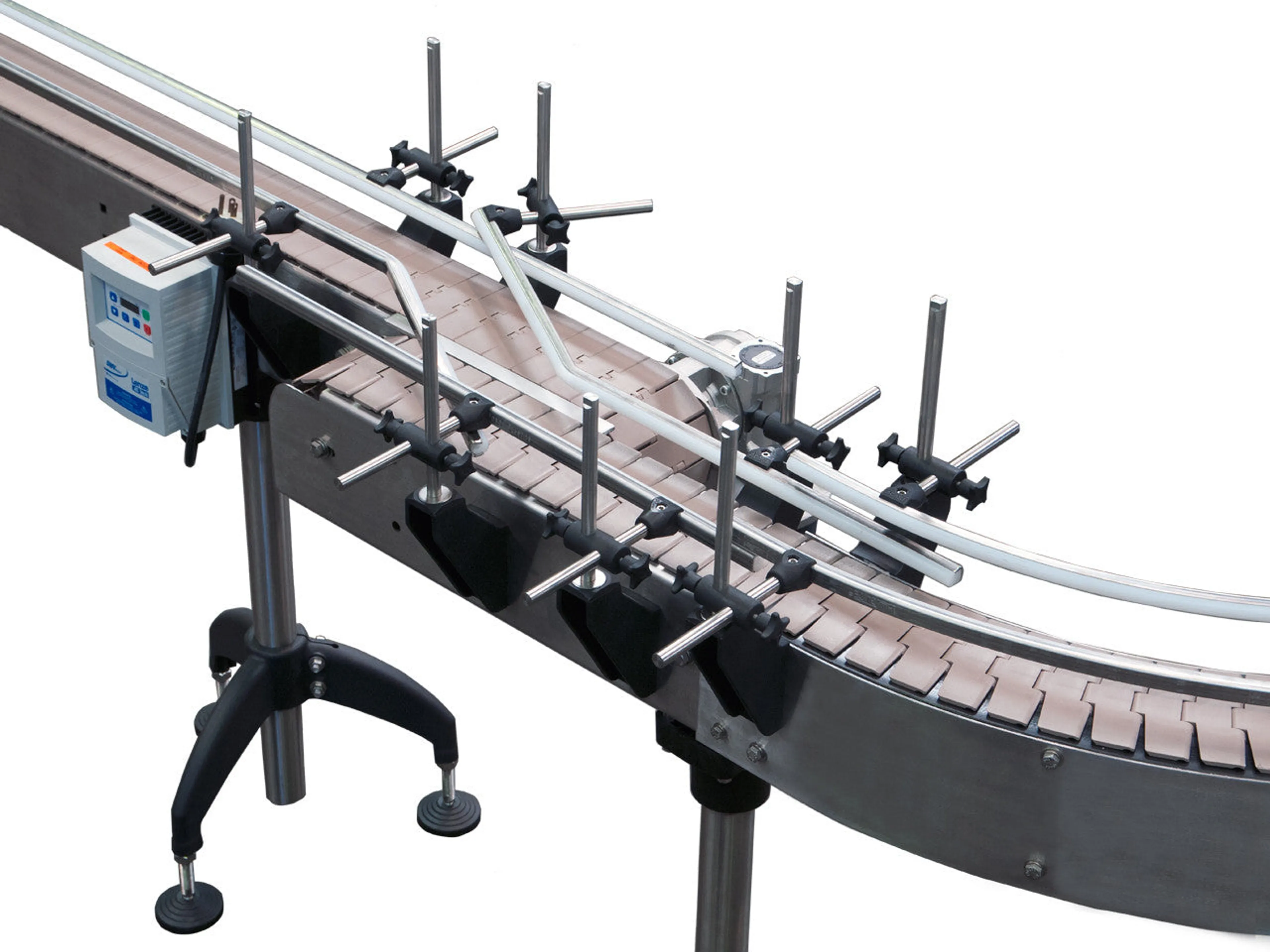

• Variable speed control mounted on conveyor for independent conveyors.
• Tripod bottom supports with height adjustability.
• One set of tool less guide rails.

7.5 in. Standard Features:

• 304 stainless steel construction.
• Acetyl 7.5 inches straight running chain.
• 1/2 HP AC motor.
• Variable speed drive installed in filling machine electric panel.
• Variable speed control mounted on conveyor for independent conveyors.
• Tripod bottom supports with height adjustability.
• One set of tool less guide rails.

Electric Requirements:

• 110 Volts, 60Hz, 10 Amps.
• Not applicable for conveyors wired into a filler control panel.
