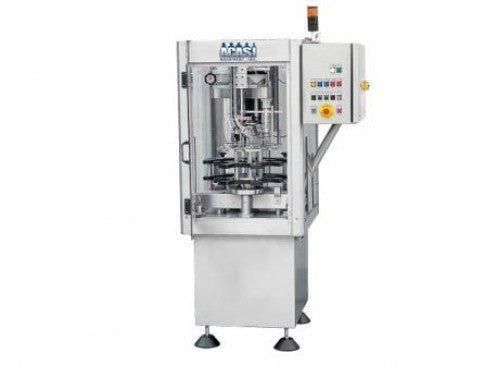

Chuck bottle capper model PC1

ACASI rotary multi head chuck capper

Model PC1-8000

Capper features:

• Machine designed to place plastic or metal caps on a wide range of containers – enclosures.
• Price includes one set of change parts (star wheel, outer guide, cap delivery and chuck).
• Acasi magnetic clutch capping head model MJ90 (Magnetic with Jaws), visual torque setting for ease of adjustment, manufactured in 304 stainless steel.
• Pick and place mechanism in stainless steel. Cap is delivered to the chuck, and then the chuck comes down holding the cap (This prevents cross- threading).
• Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).
• Center CAM manufactured in special cam rated casting.
• Cap delivery to transfer plate only when bottles are present.
• Price includes one set of chance parts (In feed screw and star wheels).
• Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
• 3 Hp Ac motor with frequency drive speed control.
• Stainless steel electric enclosure.
• Heavy duty 304 Stainless steel welded frame.
• Stainless steel enclosure with polycarbonate windows and safety switches.
• All shafts from ¼ to 2.5 inches manufactured in 304 stainless steel.
• Gear driven transmission machine to avoid timing loss.
• Complete height adjustment with bottle setting guide for quick changeovers.
• Tool-less changeovers for star wheels and most change parts.
• All electric, pneaumatic and mechanical components are off the shelf and commercially available.
• For round glass and PVC containers the machine is equipped with an anti-rotation belt device actuated pneumatically.
• For PET the center star wheel comes standard with anti-rotation teeth for each capping head.
• For odd shape container, rectangular, oblong, and others, star wheel design is used to prevent rotation of the containers.

Cap chute features:

• All contact parts in stainless steel.
• Designed and tested for each cap to avoid jamming.
• Includes cap demand sensor to start and stop the cap feeder.
• Quick change over, since parts are pin guided so no tweaking is required.

Electric and pneumatic requirements:

• Speed control by potentiometer 220 Volts, 60Hz, 10 Amps.
• 5 CFM @ 80 psi.
